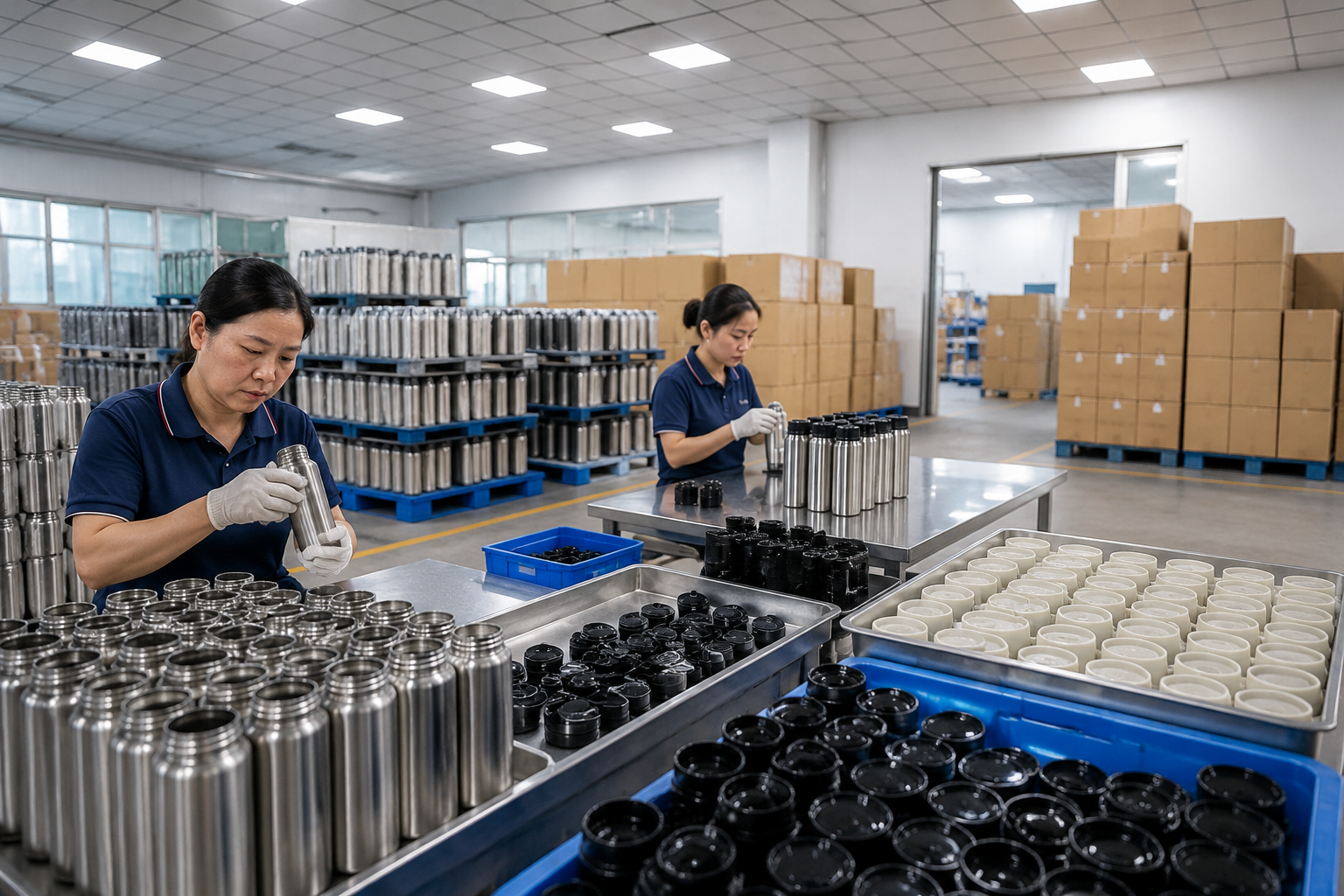

Polypropylene Thermos Flask Factory Guide for Custom Stainless Buyers

If you searched for a polypropylene thermos flask factory, you probably do not want a cheap plastic bottle. You need a stainless vacuum flask with PP contact parts that pass odor checks, fit checks, and real insulation testing, not a nice number printed in the catalog. We run logo adhesion with 300 dishwasher-style rubs and 3M tape; QC has rejected prints that looked clean under office light but failed under the line’s inspection lamp.

For outdoor retailers and promotional brands, price per piece is the wrong question to ask first. Before we quote from Hangzhou, we need the body grade, PP lid structure, capacity, powder coating color, logo method, carton size, test standard, and reorder timing, then we check whether the math works at your MOQ. Details matter. Last month, QC pulled a sample from the line and the buyer flagged a 0.5 mm lid gap, which turned a clean PO into 2 rounds of lid-tooling comments.

Start With Four Buying Decisions

A usable polypropylene thermos flask factory quote starts with four buying decisions: food-contact parts, heat-retention target, logo process, and inspection risk. Leave those open and 5 thermos suppliers will price 5 different bottles; the buyer compares noise, not cost. We see it monthly. Last week one PO said "350ml" in the item line and "500ml" on the carton mark, so our merchandiser stopped the quote before the line burned a sample slot.

First, lock the food-contact structure. Most custom stainless thermos flasks use an inner 304 stainless steel wall, an outer 201 or 304 stainless wall, a silicone sealing ring, plus a polypropylene lid, cup, or stopper. PP is not the insulation core. It cuts lid weight, molds cleanly in 8-cavity tooling, keeps the cost controlled, and passes hot beverage contact when the buyer specifies the right grade. On the factory floor, QC checks the PP lid fit with a plug gauge and measures the sealing ring groove in mm, because a 0.2 mm miss can turn into leakage after the drop test.

Second, set the insulation target. A promotional thermos for a conference may only need 6-8 hours of useful heat retention. A retail outdoor flask should normally hold hot water above 55°C after 12 hours when tested from a 95°C fill at room temperature. A wide-mouth food jar loses heat faster through the larger opening, so asking it to match a narrow-mouth flask is the wrong question to ask. We run the test with a calibrated thermometer, and QC pulled one 750ml sample last season because it hit 53°C at 12 hours, not the promised 55°C.

Third, choose the logo method and the defect tolerance behind it. A laser logo lasts, but it stays subtle. Silk screen gives stronger color, yet it can rub on curved powder coating if the ink mix or oven curing is off by 10 minutes. Full-wrap printing sells well on shelf, but the math does not work for every rush order because extra surface area brings scratches and dust spots into the AQL conversation. The buyer flagged this on a black 304 stainless bottle order: 3 small white specks near the seam were still visible under a 60 cm inspection distance.

Fourth, decide the order model. A distributor thermos program with repeat colors can use standard tooling and stable inventory. A one-time promotional thermos campaign needs faster approval, simpler decoration, and safer packing. At our Zhejiang production network, normal output for stainless vacuum drinkware is about 300,000 units per month, but the fastest jobs are the ones with fewer open details. We ship cleaner when the MOQ, carton mark, Pantone code, and lid material are confirmed before sampling; we have seen this go sideways when the buyer changes the stopper from PP to another structure after the mold trial.

PP Parts Are Not an Afterthought

About 7 out of 10 buyers who search for a polypropylene thermos flask factory are not fighting the stainless body. They are fighting the lid. The body can pass vacuum testing and salt spray, then the program still gets killed because the PP lid smells after 95°C filling, leaks at 0.3 bar, strips the thread, or misses the approved Pantone by 2 shades under a D65 light box. QC once pulled 24 lids from a 300 pc pilot run because the push button dragged after hot-fill testing. Small part. Big problem. Treat PP parts as engineered parts, not decoration.

For a custom thermos, the basic PP spec needs food-contact grade resin, BPA-free status, and stability under boiling water filling; we run first lid samples through a 100°C water soak for 2 hours before sales sends photos. Simple test. No shortcut. If you sell into Europe, ask for REACH and EU food-contact testing. For Germany or stricter retail chains, LFGB migration testing is often requested. For North America, FDA food-contact expectations and CPSIA relevance for kids products should be checked before tooling, not after the PO lands with “THM-500” typed as “THM-50O.” A serious thermos manufacturer should map tests by part: stainless liner and PP lid first, then silicone gasket and coating based on material contact risk.

There are trade-offs. Standard black or white PP is cheaper and easier to control; after the masterbatch is locked, the line usually holds color within Delta E 1.0-1.5 on our color meter. Pantone-matched PP lids often need a MOQ of 3,000-5,000 pcs because masterbatch setup, purge material, and 80-120 pcs of trial loss are real costs. Transparent PP works for some parts, but it scratches and clouds faster than opaque material; QC pulled one sample last month with cloudy stress marks around a 1.2 mm snap rib. Recycled PP looks good in a catalog, but food-contact approval and odor control are harder. The math doesn't work if marketing promises “eco PP” before the lab report is in; we have seen this go sideways with retail compliance teams.

Ask your thermos factory for lid drawings or at least section photos. Check thread depth, gasket position, push-button venting, and sealing points; a 0.4 mm gasket offset is enough to create a slow leak in carton drop testing. We run digital calipers across the thread start and gasket groove before the buyer sees the sample, because a clean lid photo hides weak compression. For outdoor retailers, we prefer simple screw lids over complicated flip mechanisms when the flask has to handle cold weather and mud in a backpack. The buyer may ask for “more functions,” but this is the wrong question if the lid has to survive a ski bag and a 1.2 m drop.

Choose Stainless Body Specifications Carefully

The body is where 6 out of 10 low-price bulk thermos quotes hide the cut. A standard manufacturer thermos build uses double-wall vacuum insulation with an inner 304 stainless steel liner. The outer shell can be 201 stainless to save cost, or 304 stainless when the buyer needs better corrosion resistance and a cleaner retail story. For outdoor retail, we push 304 inner plus 304 outer for coastal markets or warranties over 12 months. We learned that the hard way: one Chile buyer flagged rust spots after a 48-hour salt-spray check on a 201 outer sample, and QC circled 7 orange points near the bottom weld.

Wall thickness matters. Chasing the thickest sheet is the wrong question to ask. For 500 ml to 1,000 ml flasks, common stainless sheet thickness is 0.4-0.5 mm, and we run a digital micrometer check before deep drawing. Too thin, and the bottle dents on a 1.2 m drop test. Too thick, and the weight climbs, freight gets worse, and the product feels heavy on the shelf. The vacuum process and welding quality change the result as much as the sheet spec; copper plating only pays off when the vacuum hold is stable. Same photos. Different performance. A cheap factory thermos can look identical online and still lose heat faster because QC pulled the sample and found an unstable vacuum layer after 12 hours vs 18 hours on the approved sample.

Capacity changes the buying decision. A 350 ml flask works for commuter promotions and gift sets, especially when the MOQ sits at 3,000 pcs per color. A 500 ml customized thermos is still the safest general retail size. For 750 ml or 1,000 ml outdoor flasks, the perceived value looks good, but carton weight and Amazon-style dimensional logistics start to bite. One 1,000 ml order moved from 15 kg to 18 kg per carton after the buyer added a silicone boot, and the warehouse team flagged it during the carton drop check. Before opening a mold, test the flask in side pockets and car cup holders. Gloved hands matter too.

Surface treatment is a trade-off, not a decoration choice. Powder coating gives grip and a premium matte look, but it has to pass cross-hatch adhesion and abrasion checks; we run 3M tape after the cutter marks the 1 mm grid. Spray painting costs less for bright colors, but it chips faster around the shoulder and base ring. Brushed stainless lasts well and looks clean, though promo brands often complain it is not colorful enough. A capable thermos supplier should quote each finish separately instead of burying them under one vague unit price. We have seen this go sideways when a PO says "matte blue" and the artwork file calls for glossy PMS 299C.

Branding Methods Change the MOQ

Custom thermos projects usually run into MOQ trouble when the buyer picks the logo method before we map the process route. A 28 mm front logo and a 360° wrap do not sit on the same station. Different job. “Can you print it?” is the wrong question. Ask this: “Which process keeps rejects under AQL 2.5 at my order size?” Decoration changes unit price, defect rate, lead time, and the 2-5% spare quantity we run so QC can sort scratches, ghosting, and off-center marks with a Vernier check on the jig.

Laser engraving is the safer pick for outdoor bottles. It burns through powder coating or marks 304 stainless directly, so there is no ink layer to peel after a 3M tape test. We run it after final assembly on the fiber laser, usually 18-22 seconds per logo, and it fits 500-3,000 pcs distributor thermos orders without blocking the coating line. The tradeoff is color. You get a clean permanent mark, not a bright retail-shelf logo.

Silk screen printing works for promotional thermos orders because the logo can be white, black, or Pantone matched. It is cheap on a one-color job, but curved bodies need a tight jig; if the fixture moves by 1 mm, the buyer will flag the slant right away. For a one-color logo, MOQ can often start at 1,000 pcs. For multi-color registration, setup cost rises, and we usually add 3-4% extra rejects after rubbing and tape checks. Heat-transfer or water-transfer printing covers larger panels, but we do not push it on every outdoor SKU because matte coating shows scratches fast under the D65 light box.

Powder coating with custom Pantone color is where MOQ usually jumps. If the shade is already in our coating inventory, 1,000 pcs may work. If the coating supplier must make a fresh powder batch, 2,000-3,000 pcs per color is the real number. We have seen this go sideways: one buyer asked for 300 pcs with custom coating, custom PP lid color, retail box, and 12-day delivery instead of our normal 18 days, then pushed back when the revised PI added coating loss and lid mold color change fees. The math does not work at 300 pcs.

Before you approve artwork, ask for a decorated pre-production sample. Pay the sample fee. A USD 80-150 sample cost is cheaper than finding out after mass production that your 42 mm logo wraps into the weld line or disappears on a dark matte finish. QC pulled a sample like this last month, and the logo looked fine on the PDF, but it sank into the shadow once the bottle sat under the D65 light box at 650 lux.

Compare Quotes on the Same Basis

Put FOB Ningbo, FOB Shanghai, EXW, and delivered terms in separate quote columns. Mixing a FOB Zhejiang price with an EXW Anhui price is the wrong question to ask; we have seen buyers miss USD 0.18 per bottle after inland trucking and port charges hit the PI. Ask each thermos supplier candidate to quote from the same spec sheet, packing method, test requirement, and Incoterm. We run this check line by line before PI. One PO typo, such as “FOB Shanghai” instead of “FOB Ningbo,” can shift the shipment plan by 220 km and put the forwarder on the wrong pickup route.

A realistic FOB China price for a standard 500 ml stainless vacuum flask with PP lid, powder coating, one-color logo, and individual white box may sit around USD 3.20-5.80 depending on steel grade, finish, order quantity, lid complexity, and inspection standard. A 1,000 ml outdoor flask may run higher, often USD 5.50-9.50. These are sanity ranges, not promises. If your quote sits far below them, check steel grade, wall thickness, vacuum performance, and whether the lid is true food-contact PP. QC pulled one sample last month with a 0.38 mm outer wall against the buyer’s 0.45 mm drawing. The math did not work after re-costing.

MOQ needs context. For stock color bottles with laser logo, 500-1,000 pcs can work if the warehouse has enough blank stock. For thermos custom color, custom box, and PP lid color, 2,000-3,000 pcs is more normal because the coating line and injection team both need setup time. For a new lid mold, tooling can be several thousand USD and lead time may add 25-35 days before mass production starts. On the line, a PP lid color change is not just “change the color”; the injection team has to clean the hopper, purge material, and match the Pantone chip under a D65 light box. We have seen this go sideways when a buyer approved the bottle color but forgot the lid resin color on the artwork file.

Use a comparison sheet with these lines: capacity in ml, inner steel grade, outer steel grade, lid material with PP food-contact note, gasket material, coating type and thickness, logo method with artwork size, carton size, gross weight, AQL level, test reports, sample time, production lead time, payment term, port, and validity date. That puts every supplier thermos quote into the same shape. It also shows which factories answer like engineers and which ones only chase the lowest unit price. We ship cleaner orders when the sheet includes carton dimensions in mm and gross weight in kg, because the forwarder can calculate CBM before the buyer flags freight cost.

Inspection Should Match the Sales Channel

A 14-day promo thermos order and a retail outdoor bottle need different inspection plans. Wrong question if the buyer asks, "Is the bottle good enough?" Both need safety and function checks, but the reject line moves once the sales channel changes: a 0.8 mm hairline scratch that passes for a giveaway can trigger return photos on Amazon. We have seen this go sideways. One buyer approved promo-grade finishing, then sold the same lot online with 1 mm paint chips beside the logo in review photos. QC measured those chips with a Mitutoyo caliper during pre-shipment, and the buyer still said, "ship it."

For a 5,000 pcs to 20,000 pcs bulk thermos order, we suggest at least AQL Level II inspection with critical defects at 0, major defects at 2.5, and minor defects at 4.0. Critical defects are stop-line items: sharp rim edges that catch a cotton glove, oil or dust inside the bottle after air blowing, unsafe material substitution, serious leakage, or broken glass if the design uses a glass part. Major defects include poor vacuum performance after the hot-water test, wrong logo placement by 3 mm from the approved artwork, dents visible at 50 cm under the inspection lamp, coating peeling at the masking edge, lid thread failure after 10 open-close turns, and retail box mismatch. Minor defects are smaller issues such as slight color drift against the signed swatch or tiny printing flaws outside the main logo area. QC pulled the sample last month because the PO said matte black, but the approved swatch was Pantone 426C gloss.

Do not rely on a final carton count. Ask for in-line checks during welding and vacuum testing, then again after coating, assembly, and packing. A normal heat retention test should sample filled bottles over 6-12 hours, with water loaded to the same fill height and checked by a probe thermometer at the bench. A leak test needs inverted bottles and 30 seconds of shaking; standing upright for 2 minutes misses the lid failures we see on the line. For outdoor channels, packed-carton drop tests are practical because distributor thermos orders often pass through 3 warehouses before reaching stores. That crushed 42 cm carton corner will not show up until the claim lands.

If you sell online, add barcode and label checks. FNSKU labels, country-of-origin marking, suffocation warnings for polybags, and master carton labels must match the shipment file before the pallet is wrapped. Re-labeling in the US or Europe can cost more than the original decoration; the math does not work on a 3,000 pcs MOQ when one wrong digit blocks receiving. We had one case where the PO typed "FNSKU X00" but the carton file showed "X0O" with a letter O, and the buyer flagged it only after the first pallet was wrapped. A mature thermos factory in Zhejiang should accept third-party inspection from SGS, Intertek, Bureau Veritas, or your nominated QC team, and we ship cleaner when the buyer sends the channel rules before mass packing.

Build a Reorderable Thermos Program

A reorderable thermos program should feel boring where the factory needs control. We run fixed molds, Pantone chips under a D65 light box, approved PP lid resin with the melt index logged, 5-layer cartons locked to a 12 kg drop-test spec, and AI/PDF artwork showing logo width in mm. No surprises. Changing the cup body or lid seat every season sounds creative on a buyer call. On the line, it is usually where trouble starts. We have seen it go sideways: QC pulled the sample and found a 0.4 mm lid fit gap.

For outdoor retailers, build the core range around three proven sizes: 500 ml for day bags, 750 ml for hiking shelves, and 1,000 ml for camping sets. Hold it to two colors unless the forecast proves a third color can clear stock. Keep the lid platform shared where you can. Shared PP lid tooling cuts spare-part confusion and can move a repeat order in 12 days vs 18 days when the injection line already has the mold warmed up. For promotional brands, keep one reliable 500 ml or 600 ml model as the house customizable thermos, then change the logo or box sleeve by campaign. The math doesn't work if every buyer request turns into a new mold with a 3,000 pcs MOQ.

Reorder planning matters because China production schedules have hard edges. Before Chinese New Year, capacity tightens and coating lines fill fast; last January our powder coating oven was booked 16 days out, and one buyer flagged the delay only after we spotted the wrong warehouse date on their PO. Bad timing hurts. If you need spring delivery in Europe or North America, place repeat purchase orders 60-90 days before the required warehouse date. For new development, allow 7-10 days for sample preparation, 3-5 days for international courier review, 30-45 days for mass production after approval, plus sea freight time.

Define spare parts early. Extra silicone rings and replacement PP lids cost little next to 200 customer complaints about a missing gasket. If you work with distributors thermos channels, ask whether they need neutral cartons, mixed SKU pallets by carton mark, or retailer labels with barcode position set in mm; our packing table needs that before the first carton is taped, not when the container is booked. A good thermos manufacturer will discuss these details early. BottleForge Industrial is based in Hangzhou, Zhejiang, and we prefer to fix them before deposit, not after cartons are sealed.

Frequently asked questions

Is a polypropylene thermos flask the same as a stainless thermos?

Usually, no. In B2B sourcing, the phrase often means a stainless vacuum thermos with polypropylene parts such as the lid, stopper, drinking cup, or inner cap. The vacuum insulation should come from the double-wall stainless body, not from PP. For hot beverage use, specify 304 stainless steel for the inner wall, food-contact PP for the lid, and silicone for the gasket. Ask the factory to confirm BPA-free material and provide FDA, LFGB, or EU 10/2011 test reports depending on your market. If a supplier says the whole flask is PP and also claims 12-hour heat retention, be careful; plastic alone will not perform like a proper vacuum stainless construction.

What MOQ should I expect for a custom thermos order?

For a standard stainless model with stock body color and laser logo, 500-1,000 pcs can be realistic. For powder coating in a custom Pantone color, one-color logo, retail box, and food-contact PP lid, plan on 1,000-3,000 pcs per color. If you need a custom PP lid color, MOQ may move to 3,000-5,000 pcs because the injection molding factory must prepare color masterbatch and control color variation. New mold development is a separate decision and can add tooling cost plus 25-35 days. The lowest MOQ is not always the best value if it forces you into leftover stock parts or weak decoration.

How long does bulk thermos production take in China?

For an existing model, allow 7-10 days for a pre-production sample after artwork confirmation, then 30-45 days for mass production after sample approval and deposit. During peak months before Chinese New Year, add 10-20 days because stainless forming, coating, and assembly lines become crowded. Sea freight to North America or Europe adds several weeks depending on port and route. If your order requires new PP injection tooling, custom mold work can add 25-35 days before the mass production clock starts. Air freight is possible for urgent promotional thermos orders, but the freight cost often damages the margin on heavy 750 ml or 1,000 ml flasks.

Which tests should outdoor retailers require?

At minimum, require food-contact testing for stainless steel, PP, silicone, coating, and ink according to your sales market. For Europe, REACH screening and EU food-contact rules are common; LFGB is often requested by stricter buyers. For the US, FDA food-contact expectations apply, and ASTM or CPSIA may matter if the product is marketed to children. Function tests should include vacuum performance, 6-12 hour heat retention, leakage, coating adhesion, logo adhesion, dishwasher claim verification if advertised, and carton drop testing. Use AQL Level II with critical defects at 0, major at 2.5, and minor at 4.0 unless your retailer has a stricter manual.

Can one thermos factory handle promotional and retail packaging?

Yes, if the factory has both drinkware assembly experience and export packing discipline. Promotional orders often use simple white boxes, kraft boxes, or bulk cartons. Retail orders may need color boxes, hang tags, UPC labels, inserts, master carton labels, pallet requirements, and sometimes FNSKU labeling. The important point is to approve packaging before mass production, not after the bottles are finished. Ask for dielines, carton dimensions, gross weight, barcode scan confirmation, and a packed sample. For a 500 ml stainless thermos, carton quantity is often 24 pcs, but this changes with gift boxes and cup lids. Incorrect carton size can increase freight cost by 5-15%.
