Polypropylene thermal bottle factory guide: QC failures buyers miss

A polypropylene thermal bottle looks simple until 12,000 units land with loose caps, warped bodies, weak pad printing, and export cartons crushed after 28 days in a sea container. QC pulled the sample, tightened the cap by hand, then found leakage at the thread in a 30-second inverted test. Not random. We trace these failures to vague 2D drawings, 8% recycled resin mixed into virgin PP, injection temperature drifting 15°C on the Haitian machine, and inspection sheets that check scratches but skip fit, torque, and leak performance.

If you buy custom drinkware from China for retail, school programs, outdoor promotions, or distributor canteen channels, the spec has to do more work than the logo file. We run PP thermal bottle orders at BottleForge Industrial in Hangzhou, Zhejiang as plastics molding plus assembly control, not a quick catalog pull. One buyer flagged a 1.5 mm gap under the cap after mass production had started; by then, the math did not work because 36 cartons were already sealed. Fix the spec before the line opens.

Resin shortcuts show up late

The first failure point is usually not the mold. It is the resin. A polypropylene thermal bottle factory can save USD 0.08–0.15 per bottle by running mixed PP, recycled filler, or a color masterbatch with no test file behind it. On the sample desk, the bottle still looks clean under our D65 light box. Trouble shows up later: odor after hot-fill testing, white stress marks around the hinge pin, color drift after 8 dishwasher cycles, or flip lids cracking after 90 days in a warehouse. QC pulled one 650 ml sample last year where the hinge area turned white after only 30 open-close cycles; the Mitutoyo caliper showed a 0.4 mm thin spot beside the pin.

For B2B buyers, writing “food grade” in an email is the wrong control point. Put the resin grade and compliance route on the PO. For Europe, ask for a food contact declaration, LFGB or EU 10/2011 support where applicable, plus REACH and RoHS for pigments and accessory parts if your retailer requests them. For North America, FDA food-contact conformity is the usual baseline. If the bottle is for children, add CPSIA and ASTM F963 review for coatings, small parts, strap accessories, and any soft-touch paint. We had a buyer flag a PP lid because the strap buckle was left out of the test scope. One small buckle. Release slipped by 12 days while the lab reopened the file.

PP works because it is light, impact-resistant, and cheap enough for promotion programs with 3,000–10,000 pcs per color. It is not vacuum stainless steel. The math does not work if someone sells it that way. A PP thermal bottle usually relies on double-wall construction, foam fill, an air gap, or an inner liner design, so ask what the insulation structure is and ask for the test sheet. If a canteen manufacturer claims “12 hours hot” without test conditions, request the starting water temperature, ambient temperature, bottle size, fill level, and test duration. A 650 ml PP bottle tested from 95°C at 20°C ambient is a different job from a 350 ml sample sitting in a warm office at 26°C, and we have watched this go sideways when the buyer only checked the artwork proof instead of the temperature log.

Our Zhejiang engineering team asks for resin grade, Pantone color target, odor limit, and sales market before we quote. No guessing here. The line checks melt flow index on incoming PP when the lot looks suspicious, and we keep the resin bag label with the first article sample, usually clipped to the inspection file beside the Pantone card. This adds 1 day to the first offer. It saves 18 days of email fighting after shipment when a canteen customized program turns into a claims argument, especially when the PO has a typo like “PP lid in ABS black” and nobody catches it before deposit.

Molding errors ruin assembly

Injection molding is where 7 out of 10 canteen factory problems get frozen into the part. PP shrinkage catches buyers off guard more than color matching does. Move the gate 1.5 mm, shorten cooling by 4 seconds, or let packing pressure drift, and the body mouth turns oval. Then the cap thread bites or the inner cup rocks on the seat. Small error. Big leak risk. Last month QC pulled one sample where the neck was out by only 0.3 mm on a Mitutoyo digital caliper, but the cap left a visible gap on shelf display.

A good specification locks critical dimensions, not just capacity and Pantone color. Set the neck outer diameter tolerance at ±0.15 mm. Call out thread pitch tolerance, gasket groove depth, and wall thickness range on a section drawing, not in a loose email. For a typical 500-750 ml PP thermal bottle, we often see wall thickness between 1.8 mm and 2.8 mm depending on structure. Too thin, and sink marks show near the ribs; we also see body deformation after a 1.2 m drop test on the concrete test pad. Too thick, and cycle time can move from 38 seconds to 52 seconds. The math does not work on a tight promo quote.

Ask your canteen supplier for the cavity count and the QC record by cavity number. This is where buyers ask the wrong question. A 6-cavity tool can throw one bad cavity while the other five pass, so a clean random check still misses the leaking part. Without cavity marking or sampling by cavity, the line only sees the problem when assembly starts fighting back. For custom canteen projects over 10,000 units, we ask for first-article inspection, then hourly checks of weight, neck size, cap fit, and appearance. We run cavity-by-cavity records on the inspection sheet because buyers have flagged this before: “random leaking cartons” usually means the sampling plan was too broad.

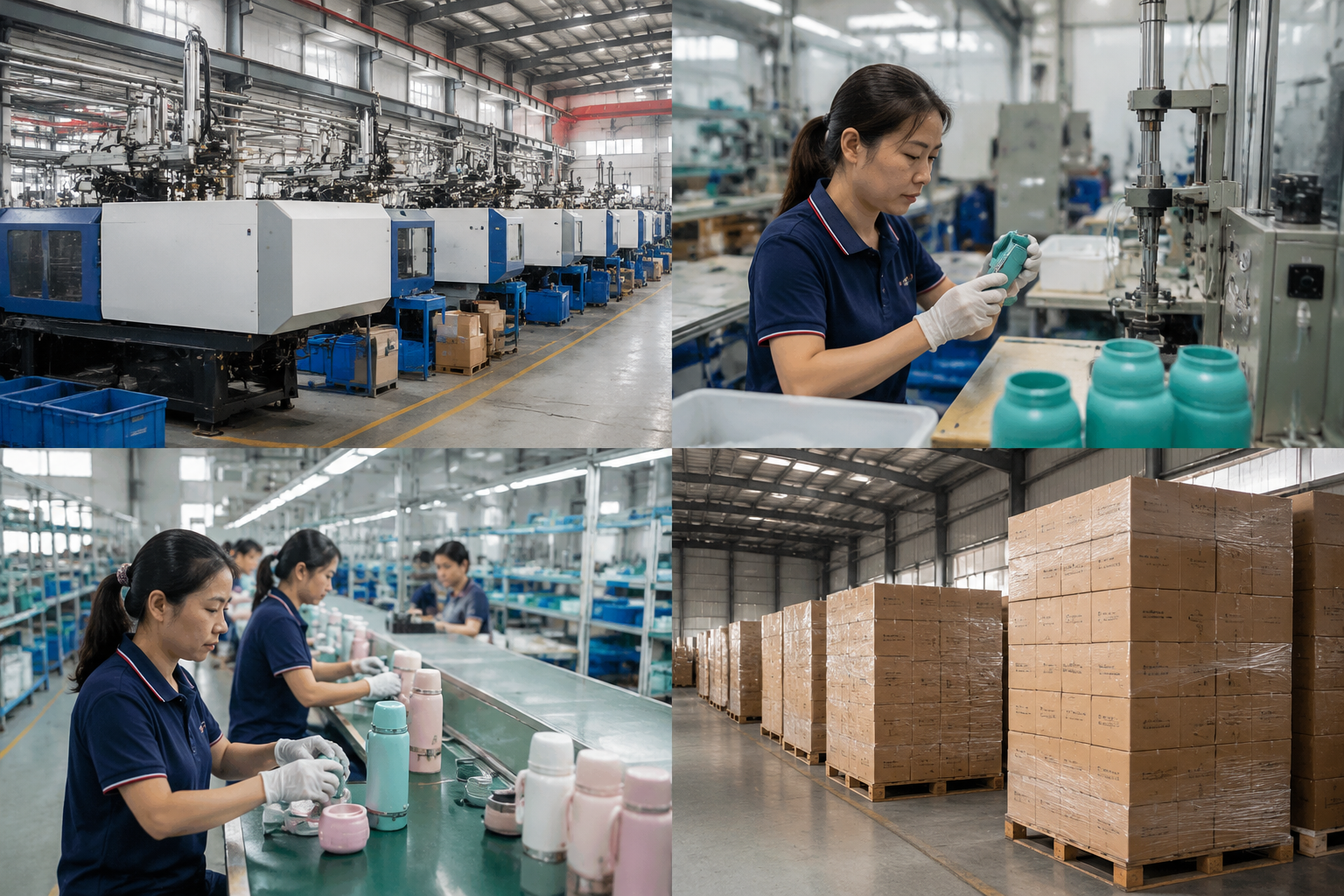

BottleForge Industrial runs PP bottle assembly lines in Zhejiang with output capacity around 300,000 drinkware units per month across plastic and stainless programs. That does not mean every order should go straight onto the line. A new customized canteen mold needs trial shots, dimensional correction, and pre-production samples; we normally expect 2-3 mold trials before the PP parts hold size across a full shift. Rush this step and you pay for the factory’s learning curve inside your cartons. We have seen it go sideways with rushed PO dates, one wrong color code typed into the approval sheet, and 36 cartons held because the buyer flagged the cap gap during incoming inspection.

Caps leak for boring reasons

Cap leaks usually start with boring dimensions, and boring dimensions still burn money. The gasket is 2 Shore A too hard, the gasket groove is 0.3 mm too shallow, the thread catches only 1.5 turns, the operator closes by feel, or the vent plug sits high on one edge. Last season QC pulled one sample where the rendering looked clean, but the silicone ring had a pinch mark at the parting line. We circled it with a red pen on the IPQC sheet and measured the flash with a 0.05 mm feeler gauge. A nicer picture will not fix that.

Compare canteen suppliers by asking for the actual leak test method. “Filled and shaken” is not a method. For a polypropylene thermal bottle, we normally recommend 100% leak testing for screw-cap designs on retail orders above 5,000 pcs, or at minimum AQL sampling with inverted testing for 30 minutes. Add a pressure test if the bottle body is flexible; we run a hand-squeeze jig on soft PP bodies because courier cartons can take a 12 kg stack load in transit. For flip lids, test upright and inverted, then test again after 20 open-close cycles. Shortcuts show up later.

Torque matters. Too tight, customers complain. Too loose, cartons get wet. Set an assembly torque range, such as 0.8-1.2 N·m for a smaller screw lid, then verify with a torque meter during inline QC every 2 hours or every 500 pcs, whichever comes first. The exact value depends on thread design and gasket compression, so do not copy it from another bottle. Test your sample; the math does not work when a 63 mm lid is treated like a 48 mm lid.

Gaskets need their own line in your purchase order. Define silicone or TPE, hardness such as 50-60 Shore A, color, odor standard, and spare gasket requirement. We once saw a PO with “silicon ring” typed once and no Shore A value; the buyer flagged it only after the pre-shipment report showed a different gasket feel. A canteen vendor can switch gasket material to save USD 0.02 per unit if you do not lock it. We have seen this go sideways: that small saving can create a 3% leak complaint rate, which is not acceptable for distributor drinkware sold through schools and corporate programs.

Decoration fails before the bottle

Roughly 6 in 10 custom drinkware complaints we handle start with the logo, not the bottle body. PP has lower surface energy than stainless steel or glass, so ink adhesion is a production risk, not an artwork detail. On our Hangzhou line, QC checks treated PP with a dyne pen before printing; if the reading sits under 38 dynes, the logo can pass photo approval and still peel after packing. We have seen it. For canteen promotional branding on a curved PP surface, lock the decoration method, flame or corona treatment setting, and sample approval before mass production.

Silkscreen printing works for one to three colors when the logo is simple and the print area does not fight the bottle curve. The surface usually needs flame or corona treatment, and the operator has to control distance and belt speed, not just wave the bottle past the flame. Small mistake, big scrap. Pad printing suits smaller logos or uneven areas, mainly around ribs or grip zones where a screen frame cannot sit flat; we run it when the print block is under 45 mm wide. Heat transfer gives finer artwork, but the temperature window is narrow. QC pulled a sample once where a 0.6 mm body wall showed slight oval deformation because the press ran too hot. In-mold labeling looks clean for high-volume programs, but dedicated tooling makes no sense for a 3,000-unit test order. The math doesn't work.

Your artwork approval should include more than a JPEG. Send the Pantone code for each color, the logo size in millimeters, the print position tolerance from a fixed point such as the lid seam, and the acceptable Delta E color difference. For retail custom canteen packaging, we normally approve a decorated pre-production sample under D65 light, then run adhesion testing on cured ink. A common method is a 3M tape pull test after 24 hours. For stricter buyers, add rub testing: 50-100 cycles with a dry cloth and 20-50 cycles with alcohol, depending on the claim. One small PO error can burn a week: PMS 186 arrived typed as PMS 168, and the buyer flagged the red only after carton photos were sent.

Do not assume “dishwasher safe” unless the bottle, decoration, and insulation structure are tested as one finished item. PP can handle more heat than several plastics, but printed logos are often the weak point. If your customer expects top-rack dishwasher use, put the test requirement in writing and state the cycle count. We have seen this go sideways when a canteen distributor sold the bottle as washable, then the logo lifted at the edge after 12 cycles in a 70°C test. For customized drinkware handled by a canteen distributor, peeling logos damage the brand faster than paying for a stronger decoration process.

Insulation claims need test limits

The word “thermal bottle” starts arguments fast. We have had buyers ask a PP thermal bottle to perform like a vacuum 304 stainless flask. The math does not work. PP is built for lightweight school bottles, sports canteen promo orders of 3,000 to 20,000 pcs, and lower-cost reusable programs. Heat retention mainly comes from wall thickness and the air gap, then the cap gasket contact and spout fit. On our line, a 0.8 mm change in inner wall thickness can move the test result more than upgrading to a nicer 5-layer export carton.

Ask the factory for a written thermal test protocol. Put the bottle capacity, starting fill temperature, room temperature range, thermometer position, test time, and pass line on the PI or spec sheet. No verbal promise. Example: fill 500 ml bottle with 95°C water, close it for 2 hours at 20°C ±2°C, then record the final water temperature with a probe thermometer inserted to the same depth each time. For cold retention, fill with 4°C water and check after 4 hours at 25°C ambient. If the bottle has a drinking spout, test heat loss through the lid, not only through the PP body. QC pulled samples last season where the body passed, but a 0.3 mm silicone plug gap killed the claim.

Watch marketing phrases such as “keeps hot all day.” Retail buyers in Europe and North America will flag that line if no test report backs it. We ship this category every month, and this is the wrong question to ask: “Can I print 12-hour hot retention?” Ask what the bottle actually holds after 2 hours or 4 hours under a named test. “Double-wall PP construction helps reduce heat transfer” is not the same as “12-hour hot retention.” If you need a stronger claim, pay for third-party testing through SGS, Intertek, TÜV, or another lab your customer accepts. We have seen this go sideways when a PO said “thermal cup” but the artwork file added “hot for 12 hours.”

For a distributor growler or custom growler project, PP is the wrong material if the customer expects beer-grade sealing, carbonation pressure resistance, or premium cold retention. Stainless steel or glass fits better. Say no early. A good canteen supplier should reject the use case before sampling starts. In China, the cheapest quote often says yes to everything; that is not engineering, it is risk transfer. Before we quote growler-style PP, we run a lid torque check with a torque meter and a 30-minute upside-down leak test on the bench, because a failed seal in a 12 kg export carton becomes your claim, not just our workshop problem.

Packing damage is preventable

A bottle can pass production QC and still arrive scratched inside the export carton. PP bottles are light, so buyers sometimes ask us to reduce carton spec and save USD 0.08-0.15 per set on packing. Bad trade. We have seen shipments land in Los Angeles, Rotterdam, and Hamburg with crushed master cartons, scuffed bottle bodies, and bent retail boxes after a warehouse stacked 11 kg cartons under 18 kg mixed goods. The math does not work. Ocean freight shakes the load for 28-35 days, and mixed-pallet handling makes weak cartons fail faster. We checked one returned carton with a 300 mm steel ruler; the side wall had folded inward by 22 mm before the bottles even reached the buyer's warehouse.

For bulk-packed distributor canteen orders, specify polybag or paper wrap, divider position if the cap can rub the bottle wall, carton ply with ECT value, carton weight limit, and pallet plan with stack height in mm. Do not leave this to the packing worker. Our packing table uses a carton compression tester and a simple 1.2 m tape measure before the line seals the first 20 cartons. For retail customized drinkware, test the printed color box and master carton as one packed unit. A normal export master carton is often 5-ply corrugated, but flute strength and paper quality vary by supplier and batch. If the order goes to Amazon FBA, add FNSKU labeling, carton size and weight limits, drop test expectations, and barcode scan checks. One buyer flagged a GS1 barcode that scanned on the flat box but failed after the corner was dented.

ISTA 1A or a buyer-specific drop test makes sense for higher-value programs. Even our basic internal test catches problems: one corner, three edges, and six faces from 60-80 cm depending on carton weight. QC pulled the sample carton, dropped it on the concrete floor near the sealing machine, then opened it and checked cap cracks, body deformation, logo scuffing, and retail box damage. Fast check. If the canteen vendors you are comparing refuse to run a carton test, ask why; we have seen this go sideways when the buyer only approved the bottle and forgot the packed carton. In our factory, a failed drop test usually means we change the divider gap by 3-5 mm or reduce the carton load before we talk about changing the bottle.

Lead time also affects packing quality. When an order is late, packing becomes the bottleneck and workers rush the tape, dividers, and carton labels. For a standard canteen customizable PP bottle using existing mold and normal silkscreen logo, plan 7-10 days for sampling after artwork confirmation, 25-35 days for mass production after deposit and sample approval, and 7 days for final inspection, booking, and loading coordination. New molds can add 20-35 days before production starts. One PO typo changed a 24 pcs/carton plan to 48 pcs/carton, and the line caught it only because the carton weight jumped from 9.6 kg to 17.8 kg. That one extra check saved the shipment; a 48 pcs carton would have failed our scale check and cracked the lower retail boxes on the pallet.

Write the PO like a checklist

The last failure mode is paperwork that reads like a chat message. A PO that says “customized canteen, blue, logo printed, good quality” is not a buying document. It protects nobody. We have seen this go sideways on the line. It leaves the canteen factory to decide the PP resin grade, wall thickness in mm, silicone gasket hardness, print adhesion test, carton burst strength, and inspection standard. Then the claim arrives after loading. Both sides scroll through WhatsApp screenshots instead of opening one signed spec sheet with the approved sample number and revision date.

Your purchase order should spell out the approved drawing or sample number, capacity tolerance such as 500 ml +/- 5%, full material list, decoration method with print position in mm, Pantone color, packaging method, compliance documents, inspection level, and shipment term such as FOB Ningbo or FOB Shanghai. For general export drinkware, 8 out of 10 buyers we work with use ANSI/ASQ Z1.4 sampling with AQL 2.5 for major defects and 4.0 for minor defects. Leakage, sharp edges, contamination, or wrong material should be 0 tolerance. No debate there. QC pulled the sample once because the PO said “blue” while the approved lid was Pantone 2925C; that one word cost 2 days, plus a second pre-shipment photo set on the light box.

For pricing, be direct. A typical PP thermal bottle program may start around USD 1.20-3.80 FOB depending on capacity, insulation structure, cap complexity, decoration, and packaging. Cheap has a floor. A canteen promotional order with one-color print and bulk packing sits near the low end because we run fewer stations and the carton pack is simple. A canteen customized retail program with color box, strap, special lid, and third-party testing moves up fast because the line needs pad-print setup, strap assembly, barcode checking, and packed-product drop checks from 80 cm. MOQ is usually 3,000-5,000 units per color for existing molds, higher if you need custom colors or dedicated tooling. Below that, the math doesn't work unless the buyer accepts a stock PP color and a shared production slot.

If you are qualifying canteen manufacturers in Zhejiang or elsewhere in China, ask for factory audit status such as BSCI, ISO 9001 quality system records, incoming material controls, and final inspection reports from recent export orders. You do not need a perfect factory. You need a canteen supplier that names the risks early, records the controls, and lets you inspect before the balance payment leaves your bank. The wrong question is “can you make it?” Most factories will say yes. Ask who signs off the resin batch, who checks the lid torque on the torque meter, and who approves the final carton mark before we ship; we once caught a PO typo that changed “matte black” to “metal black” only at carton artwork review.

Frequently asked questions

What MOQ should I expect from a polypropylene thermal bottle factory?

For existing molds, a realistic MOQ is usually 3,000-5,000 units per color. If you need a custom Pantone body color, some factories require 5,000-10,000 units because resin mixing and machine cleaning create waste. For a fully custom canteen with new tooling, MOQ often starts at 10,000 units, plus mold cost. Small trial orders are possible when you accept stock colors, simple silkscreen printing, and bulk packing. Be careful with very low MOQ promises under 1,000 units for customized drinkware; the unit price, color consistency, and QC attention may not match retail expectations.

Can PP thermal bottles really keep drinks hot or cold?

Yes, but within limits. A PP thermal bottle is not a vacuum insulated stainless bottle. Its performance depends on double-wall structure, air gap or foam layer, cap sealing, and capacity. For example, a 500 ml double-wall PP bottle may be tested for 2-4 hours of heat reduction control, not 12-24 hours. Ask the factory for a test report showing starting temperature, ambient temperature, fill volume, and final temperature. If your packaging makes a strong claim, use third-party testing. For distributor drinkware and canteen promotional programs, safer wording often avoids exact hour claims unless you have lab data.

Which logo method works best on polypropylene bottles?

Silkscreen printing is the most common for one to three colors, but PP usually needs flame or corona treatment for good ink adhesion. Pad printing works for smaller curved areas. Heat transfer allows more color detail, but temperature must be controlled to avoid warping the bottle. For high-volume programs, in-mold labeling can look premium, although tooling cost and MOQ are higher. Before mass production, approve a decorated sample and request a tape adhesion test after 24 hours curing. For tougher retail requirements, add rub tests with dry cloth and alcohol. Do not assume dishwasher-safe printing without testing.

What quality inspection standard should I put in the PO?

Use ANSI/ASQ Z1.4 or ISO 2859-1 sampling with clear AQL limits. Many B2B drinkware buyers set AQL 2.5 for major defects and 4.0 for minor defects, with critical defects at 0 tolerance. Critical defects should include leakage, contamination, sharp edges, wrong material, broken cap parts, and unsafe small parts. Your inspection checklist should include capacity, weight, wall appearance, cap torque, gasket fit, print position, barcode scan, carton drop condition, and packing count. If the order is 20,000 units or more, consider inline inspection plus final random inspection before balance payment.

How long does a customized canteen order take from China?

For an existing mold with stock or standard custom color, plan about 7-10 days for samples after artwork confirmation and 25-35 days for mass production after deposit and sample approval. Final inspection, carton labeling, booking, and loading usually need another 5-7 days. If you need a new mold for a custom canteen or customizable growler shape, add 20-35 days for tooling and trial correction. Sea freight to North America or Europe is separate and can add 25-45 days port to port depending on routing and season.
