Polypropylene Thermal Bottle Custom: Failure Modes Buyers Miss

A polypropylene thermal bottle custom project looks simple on a quotation sheet: PP body, insulated liner, screw cap, logo, carton packing, FOB China. Trouble usually starts after PP injection. On the line, we check cap torque with a digital torque meter and find 0.6 N·m instead of the agreed 0.9 N·m. Then the Pantone color shifts between two production lots, or a distributor canteen program comes back with a 4% leak complaint rate from retailers.

We manufacture custom drinkware in Hangzhou, Zhejiang, and we see the same failure pattern on about 7 out of 10 new PP bottle inquiries from first-time buyers. Bad luck? No. That is the wrong question to ask. Loose specs cause the damage. If you want a canteen customized for school supply, outdoor retail, corporate promotion, or private label distribution, confirm the PP grade, liner fit, tolerance in mm, logo position, leak-test method, and AQL level before the deposit is paid. Last month QC pulled the sample because the PO said “blue” while the artwork file said Pantone 2925C.

Failure one: the bottle warps

Polypropylene is tough, light, and food-contact safe. It is not magic. A polypropylene thermal bottle custom order warps when the resin grade, barrel temperature, cooling time, or wall thickness gets pushed past the limit. We see it at mold trial: the Mitutoyo caliper reads 1.35 mm on a side wall called out as 1.8 mm, then the body turns oval within 20 minutes of demolding. Bad sign. Buyers push for a lower FOB price, and this is the wrong place to chase 3 cents. The math does not work. Some suppliers cut 4-6 seconds from the cycle or remove 8-12 g of resin weight to hit the target, then the line spends the next week sorting bent bottles.

For a single-wall or double-wall PP canteen custom project, we keep the body wall around 1.8-2.5 mm, depending on capacity and shape. Thin flat panels are trouble. They sink, wave, or show white stress marks after the part leaves the mold and sits in the cooling rack. Tall oval bodies need ribbing or a wider radius, not only a clean rendering from the design team. On a 600 ml or 750 ml canteen customizable for retail, sharp shoulders trap stress; QC pulled one T0 sample last year where the shoulder lifted 2 mm after a 70°C hot-water check.

Ask the canteen factory for resin details, not just “food grade PP.” For Europe, request EU 10/2011 food-contact documentation and REACH-related declarations for colorants. For North America, ask whether the material is suitable for FDA food-contact use. If the bottle must handle hot filling, state the maximum liquid temperature, such as 80°C for 30 minutes. Put it on the PO. We once had a buyer flag deformation after launch, then their PO said only “PP bottle, assorted colors,” with no hot-fill condition, no test standard, and a typo in the item code that sent QC back to the approved sample wall.

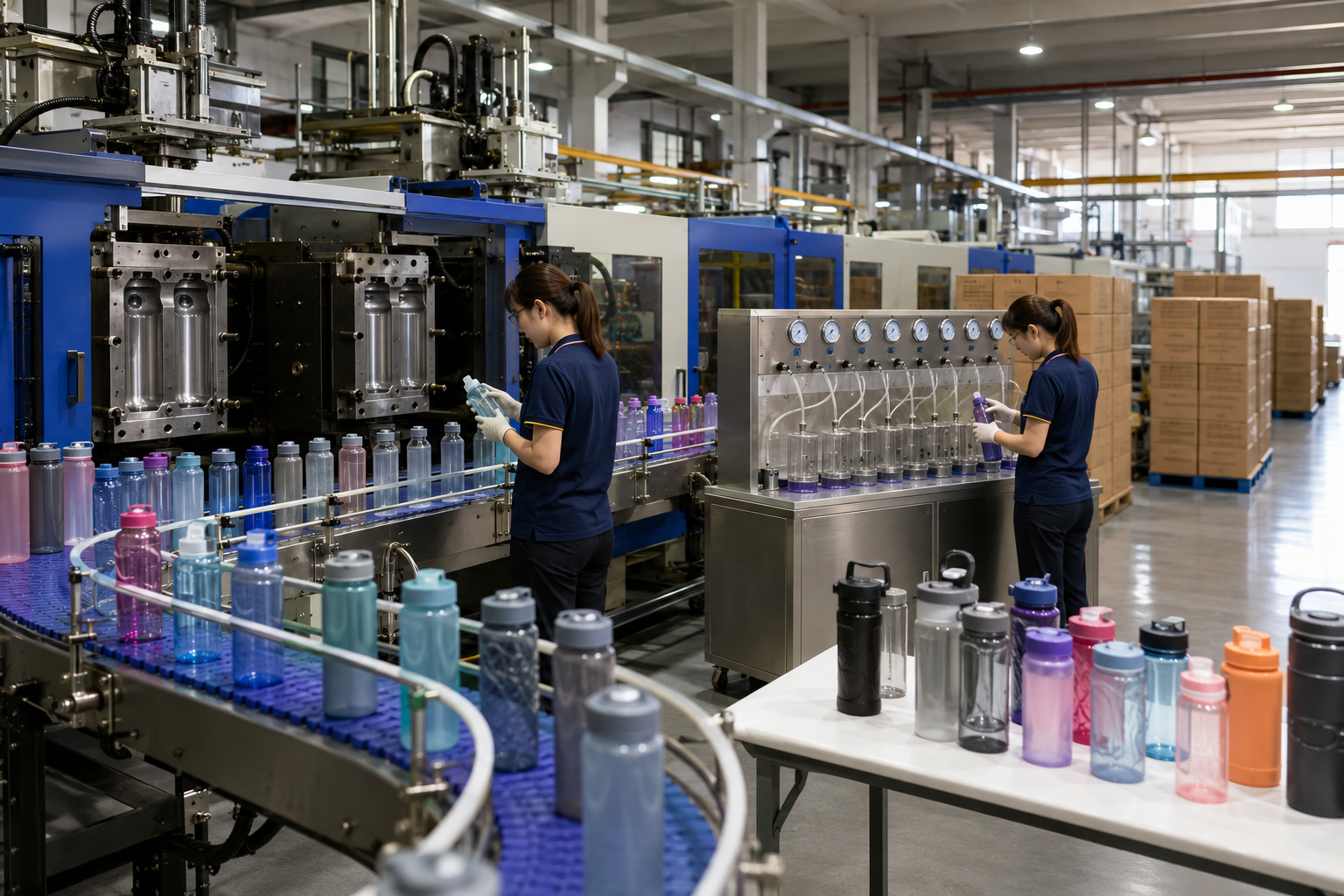

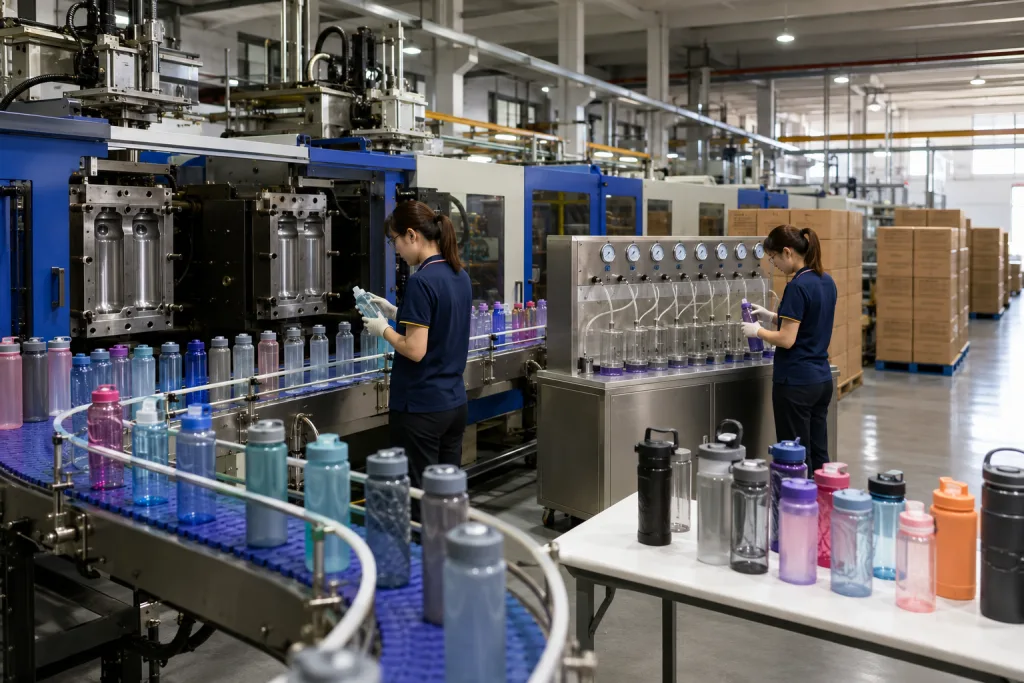

Our Hangzhou, Zhejiang production line can produce about 180,000 PP drinkware units per month, but capacity does not save a weak drawing. The safe route is simple: approve the 3D structure, make T0 samples, then check body roundness, cap fit, standing stability, and heat deformation before final tooling. We run roundness with a go/no-go gauge, check the cap thread by hand and torque meter, then leave 12 filled samples on a granite flat plate for 24 hours to see if the base rocks. We have seen this go sideways. A custom canteen with bad mold design will not be fixed by stricter final inspection.

Failure two: caps leak in cartons

Leakage is the complaint that gets a canteen distributor angry fastest. One leaking bottle can soak printed cartons, stain instruction sheets, and make the full drinkware program look careless. On polypropylene thermal bottles, we usually trace leaks to 3 spots: thread bite too shallow, gasket Shore A hardness wrong, or cap torque drifting after the lunch restart on the line. It happens fast. QC pulled one sample last month where the outer carton looked clean, but the E-flute inner divider was wet across 6 cells, and the barcode label had already started to wrinkle.

Your PO should define the leak test. Write it down. For a basic check, we fill the bottle with room-temperature water, close the cap at set torque, invert it for 30 minutes, then check for visible leakage on white tissue. For a sports or school canteen promotional item, we run a shake test too: 20-30 seconds of manual shaking after inversion. If the product will ship with accessories or powder sachets inside, put that on the PO, including the packing position. We have seen this go sideways: the buyer added sachets after approval, and packaging pressure pushed weak lids open during a 12-day sea shipment. The PO even had a typo, “power sachet,” so nobody on packing caught the change until carton drop testing.

Gasket material matters. Silicone gaskets usually survive repeated opening and closing better than low-cost TPE. For a customized canteen with a straw lid or flip lid, ask for cycle testing, not just one clean counter sample. A fair pre-production target is 1,000 open-close cycles without hinge cracking or gasket displacement. For a budget promotional order, you can accept a lower target, but the math does not work if a cheaper gasket saves USD 0.015 and creates 2% wet cartons. We check gasket seating with a pick tool and a visual gauge before packing, and if the lip sits proud by even 0.5 mm, QC stops the carton.

Thread tolerance is a quiet killer. If the body shrinks 0.3 mm more than expected after molding, the cap can still close while losing seal compression. Your canteen manufacturer should measure thread major diameter, minor diameter, and gasket groove depth during production with calipers or a thread gauge. For a new cap, we suggest 100% leak testing on the first 5,000 units, then sampling after the process holds steady for 2 shifts. AQL alone misses intermittent cap problems. This is the wrong place to save 3 seconds per unit. The buyer flagged this before: “sample OK, mass goods leaking,” and the root cause was a worn mold insert on cavity 7.

Do not approve a cap only because it feels good on one sample. Ask how the supplier will control torque, gasket seating, and thread dimensions on day 12 of production.

Failure three: insulation claims get inflated

The word “thermal” causes a lot of buyer disputes. On our PP bottle orders, 6 of 10 claim arguments start with that one word on the spec sheet. A polypropylene thermal bottle is not a stainless steel vacuum flask. Different job. PP can slow heat loss with a double-wall body, a 2.0–3.5 mm air gap, foam insulation, or an inner liner, but the working range is tight. If a canteen vendor promises 12 hours hot on a lightweight PP bottle, ask for the test method before you sign the PO. We’ve seen this go sideways: QC pulled the sample from the line, checked it with a probe thermometer, and the water was already lukewarm at the 4-hour check.

Write the thermal claim as a test condition, not a sales line. Use numbers. For example: fill with 95°C water, close cap, test at 20°C ambient temperature, then record water temperature after 2 hours and 4 hours. We run this test with a calibrated probe thermometer and log the cap torque in N·cm, because one loose flip lid can kill the result. Small gap, big problem. A double-wall PP bottle is fine for keeping water warmer on a school bus or cooler during a 40-minute gym session. Do not sell it like a vacuum bottle unless the structure can defend that claim.

For a polypropylene thermal bottle custom order, first decide whether you need heat retention or just a cooler touch surface with lower weight. “Can you make it thermal?” is the wrong question to ask. Ask what temperature drop you can defend after 2 hours and 4 hours. Two canteen suppliers may quote the same shape 8–12% apart: one includes a foam insulation layer, the other is only a decorative double wall. Cut samples help. Ask the canteen manufacturer for a cross-section photo, wall thickness in mm, or one sacrificed sample from the pilot run. We usually cut it with a band saw, then QC checks the wall and liner with calipers.

If you are buying for Europe or North America, keep claims conservative enough for retailers and marketplaces. “Keeps drinks warm longer than single-wall PP” is safer than an untested hour claim. One buyer flagged a carton mark that said “12H HOT” while the approved artwork only said “thermal bottle”; that one typo delayed shipment by 3 days. If you need stronger performance, stainless steel or a glass liner is the cleaner route. The math does not work if you need vacuum-flask performance at PP bottle weight and PP pricing. A good China supplier should say when PP is the wrong material, not just accept the artwork and take the order.

Failure four: logos peel or look cheap

PP has low surface energy, so print failure is not a mystery. The logo can pass on the golden sample, then lift during a 3M 600 tape pull, a dish-soap wipe, or 2 days bouncing against keys in a backpack. We see this on canteen customizable orders when the buyer spends 6 emails on Pantone color and gives us one short line for adhesion. Wrong priority. Last month, QC pulled 3 samples from a 500 pcs pilot run; 1 logo edge lifted after tape pull because the operator printed on untreated PP. The dyne pen told the story before the tape did.

For polypropylene, we treat the surface before silkscreen, heat transfer, or selected UV printing. Flame treatment and plasma treatment give the ink something to bite into; without treatment, the math doesn't work. Ask your canteen supplier which treatment they run, the dyne level after treatment, and the gap before printing. On our line, QC checks with a dyne pen at the print station, and treated PP printed 12 hours later behaves better than bodies left on a pallet for 18 days. We run 38–42 dynes as the working range on most PP bodies, then print before the surface drops back.

Define logo testing in the sample approval. A workable test set is 3M tape pull after 24 hours curing, 50 dry rub cycles, 20 wet rub cycles, and mild detergent wipe. For canteen promotional stock for events, that covers most orders. Retail needs tighter control. If it is retail customized drinkware, add dishwasher simulation only when the bottle structure and print method can take it. We have seen this go sideways: a buyer flagged “dishwasher safe” on the PO, but the approved artwork file said hand wash only. That is the wrong question to ask after mass production starts. At least 7 out of 10 PP thermal bottle projects we ship should be labeled hand wash only, and pretending otherwise creates returns.

Color matching needs discipline. Molded PP color shifts because pigment reacts by resin batch and wall thickness; a 1.2 mm shoulder and a 2.0 mm base will not read the same under a light box. For large custom drinkware programs, approve a physical color chip and set a tolerance such as Delta E under 1.5 or 2.0 where practical. If you need a matte finish, scratches show faster than on glossy PP; our inspector once found a 0.6 mm scuff line across a matte black sample that the buyer missed in photos. A canteen customized with a large solid logo on a curved body often needs artwork adjustment to avoid distortion. Send vector artwork, not a JPG pulled from a catalog page.

Failure five: compliance paperwork is thin

About 8 out of 10 canteen vendors can email a test report within one hour. The harder job is proving that report belongs to your PP grade, color masterbatch, silicone gasket, ABS lid insert, and production week. This matters for EU, UK, Canada, and United States imports. A polypropylene thermal bottle custom order is never one material. The PP body touches water. The straw uses a separate resin. The gasket sits under heat and pressure, and the ink or coating often needs its own food-contact check. We once had QC pull a blue lid sample because the PO said Pantone 2925C, but the supplier attached a report from a white stock bottle made 11 months earlier. That file fails a serious buyer review.

At minimum, ask for a bill of materials and food-contact declarations for every food-touch part. For EU buyers, EU 10/2011 migration testing is usually the main plastic food-contact test. REACH and LFGB come up when the customer sells into Germany or asks for tighter chemical control. For US buyers, FDA food-contact suitability applies, and children’s bottles bring CPSIA-related requirements into the file. If the bottle is sold for children, do not treat it like a normal adult promotional bottle. Ask the real questions: which part was tested, which lab ran it, which lot it covered, and whether the 6 mm straw tip or pull ring creates an ASTM small-parts issue. We have seen a buyer flag one loose pull ring during teardown, even though the carton mark and barcode were both correct.

Factory audits are separate from product compliance. BSCI, Sedex, ISO 9001, or similar audit documentation helps vendor approval, but it does not prove a gasket is compliant. A canteen distributor should keep two folders: factory qualification and product test evidence. We run into this with retail buyers after delivery; one chain asked for the silicone declaration 4 months after the goods landed because their internal QA system flagged “mixed material bottle.” The line had passed the final AQL 2.5 inspection, cartons were clean, and labels matched the artwork, but the missing gasket file still slowed payment by 12 days.

For China production, test timing matters. Pre-production material test reports have value, but random testing from mass production carries more weight. For higher-risk orders, reserve 10-20 units from bulk production and send them to SGS, Intertek, TÜV, or another accepted lab. We usually seal those samples in a carton, mark the production date and cavity number, and take photos beside the digital scale before courier pickup. Small cost. Real protection. A serious canteen manufacturer will not object to defined third-party testing; if they push back on 10 bottles and one lab invoice, the math doesn't work.

Failure six: cartons fail before bottles do

Drinkware buyers spend 2 weeks arguing over bottle shape, then give export packing 60 seconds. Wrong priority. PP bottles are light, but the cap edge, carry handle, and silk-screen panel still rub for 28-35 days on the water from Ningbo or Shanghai. Last year we opened 42 humid-container cartons where the bottle body passed QC, but the printed logo had grey scuff marks from loose inner packing. The buyer flagged the shipment as second grade. That hurts margin fast.

Write the packing spec with numbers. Say it plainly: each bottle in a polybag or tissue wrap, 24 units per master carton, 5-ply corrugated carton, export carton burst strength or edge crush test target, gross weight under 15 kg where possible. For Amazon FBA or 3PL delivery, add FNSKU labeling, carton label size, suffocation warning for polybags where required, and pallet configuration. We run carton checks with a 5 m tape measure, carton scale, and packing ruler before sealing the golden sample carton. A distributor growler or custom growler order often needs heavier dividers; PP canteen products still need abrasion control around the shoulder and cap because the line will not babysit every piece once packing starts.

Drop testing should match the selling channel. For normal wholesale, ISTA-style carton drop checks from 76 cm show weak corners, crushed dividers, and loose caps fast. For ecommerce, use tougher single-parcel testing because one bottle may ship alone, with no master carton around it. QC pulled the sample after a 1 L canteen drop last season: the body was fine, but the handle root showed a hairline crack under the inspection lamp. Handles fail first.

Build packing approval into the lead time. Our typical MOQ for a polypropylene thermal bottle custom project is 3,000 units per color, with 25-35 days mass production after approved sample and deposit. If you need custom color boxes, add 7-10 days for print proofing and carton testing. We have seen this go sideways when a PO says "standard export carton" but the buyer expects FBA-ready labels and pallet height control at 1.6 m. This is the wrong question to ask after bottles are finished. The math does not work.

Failure seven: inspections happen too late

Final inspection is necessary, but it cannot save a finished order. If you wait until 100% of the goods are packed, the choices are ugly: accept defects, pay for rushed rework, or lose the vessel cut-off. We saw this on a 5,000 pcs polypropylene thermal bottle custom order when QC pulled the sample after carton sealing and found 3 leaking lids in 80 pcs checked. Too late. The math doesn't work. Put inspection points into the production schedule before the line starts, with the QC table, leak-test jig, torque meter, and carton labels ready on day one.

Use a simple control plan. Check T0 or T1 samples from the tooling room, including gate position, lid fit, and flash around the mouth measured with a 0.02 mm feeler gauge. Approve pre-production samples made with final PP resin, final color, final gasket, and final print method. A lab-matched Pantone chip will not protect you if the mass-production resin batch shifts by half a shade under warehouse light. Run inline inspection when 10-20% of goods are produced, then perform final random inspection when at least 80% is packed. For most B2B custom drinkware orders, AQL 2.5 for major defects and 4.0 for minor defects is standard, but leakage, sharp edges, contamination, or wrong material should be zero tolerance. “Can we inspect at the end?” is the wrong question. Ask where we can still fix the issue without losing 6 days.

Define defects in writing. A small black speck on the bottom may be minor. A sharp gate mark near the mouth is critical, and our trimming knife mark should not be felt by a 3M tape rub test or fingertip check. A 1 mm logo shift may pass for canteen promotional use but fail for premium retail customizable drinkware, especially when the buyer’s artwork has a center line on the PO. Without a defect classification sheet, your inspector and the factory will argue from phone photos after the cartons are sealed. We have had QC reject 42 pcs because the flash was visible under the lid thread. Nobody wins that argument.

If you work with multiple canteen manufacturers or canteen distributors, keep one master specification across vendors. That means drawings, Pantone references, torque range, leak test, carton spec, barcode rules, and approved samples, all with the same revision number on every file. We once had a buyer flag “Panton 186C” on a PO, and two suppliers read it differently. A canteen vendor in China can make a good product when the target is clear. The buyer’s job is to remove interpretation. The factory’s job is to control the process and report problems early, not hide them until the container is booked. If the carton drop test fails at 9 kg gross weight, we need to know 12 days before ETD, not 18 hours before loading.

Frequently asked questions

What MOQ should I expect for a polypropylene thermal bottle custom order?

For a standard existing mold, a realistic MOQ is usually 3,000 units per color. If you need a custom molded body, private cap, or special insulation structure, expect 8,000-10,000 units because tooling setup, resin color matching, and line changeover cost more. For logo-only canteen promotional orders, some factories may quote 1,000 units, but the unit price and inland handling cost are often inefficient. At BottleForge in Zhejiang, typical production lead time is 25-35 days after sample approval, with sampling around 7-12 days for existing molds. Custom tooling can add 25-45 days before mass production.

Is polypropylene safe for hot drinks?

Polypropylene can be suitable for warm or hot liquid contact if the resin and colorants are food-contact compliant and the design is tested. You should specify the intended temperature, such as 80°C water for 30 minutes, instead of saying “hot drinks” generally. PP softens before stainless steel, so shape, wall thickness, and cap fit must be checked after heat exposure. For EU markets, request EU 10/2011 migration documentation. For the US, ask for FDA food-contact suitability information. If you want long heat retention above 6 hours, PP is usually not the best material; a stainless vacuum structure is more appropriate.

Which logo method works best on a custom canteen made of PP?

Silkscreen printing is common for one- to three-color logos and can be cost-effective from 3,000 units. Heat transfer can handle more complex graphics, but adhesion depends heavily on surface treatment. Laser engraving is generally not ideal for most PP bodies because the contrast can be weak and the mark may look uneven. The key is not only the logo method; it is flame or plasma treatment before printing and proper curing after printing. Ask for a tape test, 50 dry rub cycles, and wet rub testing on approved samples. For retail customized drinkware, approve a physical printed sample, not only a digital mockup.

How do I compare quotations from different canteen suppliers?

Put every quote into the same format: capacity, body weight, wall thickness, resin grade, gasket material, cap structure, logo method, packing, MOQ, lead time, test standard, and Incoterm. A bottle quoted at USD 1.18 FOB Ningbo may not equal one at USD 1.32 if the cheaper option uses thinner PP, no silicone gasket, weaker cartons, or no leak testing. Ask whether pricing includes color matching, printed samples, master carton labels, and export documents. For distributor canteen programs, also confirm spare parts policy, because replacement caps can reduce after-sales pain.

Can one supplier handle canteen, growler, and other custom drinkware lines?

Yes, but check whether the supplier is a real manufacturer, a trading company, or a mixed sourcing office. A canteen manufacturer strong in PP injection molding may not produce stainless customized growler items in the same workshop. That is not automatically bad, but you need transparency. For a distributor drinkware program, it can be efficient to use one China partner for project management, artwork control, inspections, and export consolidation. Ask for product-line capability, monthly capacity, audit documents, and sample history. If the order includes custom growler, customizable canteen, and travel tumbler items, use separate specifications and test plans for each material.
