Double Wall Bottle Promotional Buyer Guide for B2B Specs

If you buy double wall bottle promotional drinkware, the spec sheet matters more than the mockup. Full stop. A glossy pre-production sample can hide 0.35 mm steel instead of 0.4 mm, weak vacuum retention, or a lid that starts weeping after 20 wash cycles. QC pulled samples like that before. For Europe and North America, the paperwork has to be clean too: REACH, FDA food-contact expectations, carton drop test results, and print consistency on repeat POs. Buyers often ask for the logo finish first. That is the wrong question to ask.

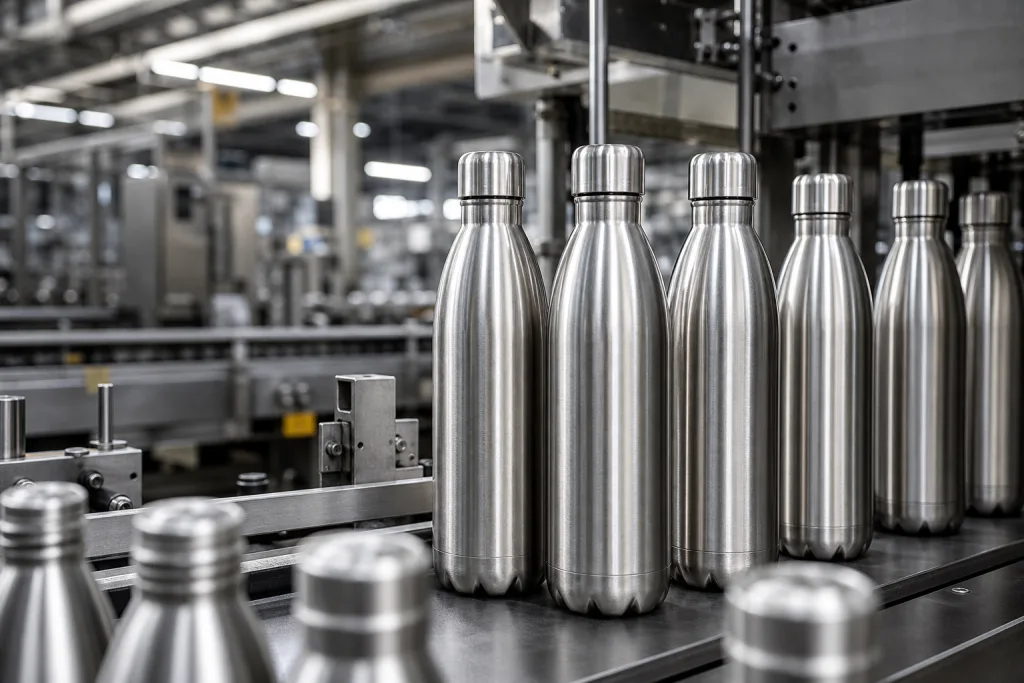

At our Zhejiang factory in Hangzhou, we ship double-wall bottles from a monthly capacity of 600,000 units, with standard MOQ starting at 3,000 pcs and normal lead time around 25–35 days after approval. That range is realistic for a canteen manufacturer, not a trading promise. We run helium leak checks on the line, and the buyer flagged one order last year because the PO typo changed matte black to matt back. Small mistake, expensive rework. If you source from China, read the bottle the way an engineer reads it: material grade, wall construction, lid sealing, coating thickness, branding method, and pack-out all change landed cost and return rate. We have seen this go sideways.

Read the body construction first

The first line on any double wall bottle promotional spec should be the body construction. Read that first. You need to know if the body is single-piece drawn stainless, two shells laser welded, or a hybrid with a plastic liner. For a real custom drinkware program, the safe standard is 18/8 stainless steel on both inner and outer walls with vacuum insulation. Typical wall thickness sits around 0.4–0.5 mm. Below 0.4 mm, dent resistance drops fast; we’ve seen cartons arrive with shoulder dings after a 1.2 m drop test and the buyer flagged it right away.

Vacuum space is not marketing copy. A stable vacuum gap of roughly 0.5–1.0 mm holds temperature better and cuts condensation on the outer wall. If the bottle is called custom canteen or customized canteen, ask the factory to confirm whether the seam is TIG welded or spun, because that changes field failure rates. On our line, QC pulled the sample and checked the weld ring under a cut section before mass production. A good canteen factory in Zhejiang should show you cross-section photos, not just a polished sample. If you buy for a distributor program, insist on the same gauge and finish on repeat orders. This is where batches drift. We’ve seen a second PO come back with 0.35 mm outer wall and a brushed finish that looked 2 shades lighter on shelf.

• Inner steel: 304 / 18-8 is standard for beverage contact
• Outer steel: 201 is cheaper, but dents and rust risk are higher
• Typical capacity: 350 ml, 500 ml, 750 ml, 1,000 ml
• Practical note: a 500 ml bottle usually weighs 260–360 g depending on lid and base

Vacuum performance you can measure

Temperature claims need numbers. Not adjectives. For a promotional canteen, we usually quote 6 hours above 60°C for hot drinks and 12 hours below 10°C for cold drinks, tested at room temperature with a full fill. Better build and a tighter lid can move that to 8–18 hours, but only if the vacuum layer passes inspection and the cap is not leaking at the silicone ring. We’ve seen this go sideways: the body passed, the lid failed, and the buyer flagged the whole bottle.

Ask the canteen supplier for the test setup: starting water temperature, ambient temperature, fill ratio, and whether the lid stayed on for the full test. This is the right question. A serious canteen manufacturer in China should show a retention chart for each SKU, and on our line QC pulled the sample and logged the reading by hour, not just a final claim on a sheet. For distributor drinkware orders, the math doesn't work if your brochure says one thing and the end customer tests another on their desk. If you plan a custom growler or customizable growler style bottle for beer, check carbonation and pressure resistance too; a growler lid usually needs a stronger seal and a wider mouth than a standard commuter bottle, often with a thicker gasket around 3 mm.

Do not buy on “keeps drinks hot all day.” Buy on the actual test condition, or you will end up arguing with your own sales team later.

Lid design decides leakage risk

The lid is where most promo bottle complaints start. A screw cap with a silicone gasket is the baseline. Flip lids, straw lids, and push-button lids add convenience, but they also add parts and QA risk. If you are ordering canteen promotional or customized drinkware for events, schools, or corporate gifting, pick the lid from user behavior, not from a pretty rendering.

For bottles that go into backpacks, we ask for a 1.2–1.8 mm silicone gasket and a torque test on the bench. The lid should pass 5,000 open-close cycles in production testing. If you need a canteen customizable option with a handle, carabiner loop, or sport spout, check whether the thread spec stays the same across sizes. One thread family can cover 3 bottle bodies on our Zhejiang line, and that cuts spare-part mess for importers. A buyer once flagged a PO typo on the lid code, and the rework cost more than the unit price gap. For North America, the math is simple: one leak claim hurts more than a slightly higher price.

• Minimum lid checks: gasket fit, torque, drop test, odor test
• Useful buyer ask: spare lids at 1%–2% of order quantity
• Best practice: test with hot water and with carbonated beverage if the design will be used that way

Branding choices change your margin

Promotional drinkware lives or dies on print quality. For a double wall bottle promotional order, we run four main methods: silkscreen, laser engraving, UV print, and heat transfer. Laser engraving stays clean on 304 stainless steel and does not wear off, but it gives you one color only. Silkscreen is the cheap choice on larger flat panels, and it works when the buyer wants the logo seen from 3 meters away. UV print handles gradients, though the line needs better surface prep and tighter curing control; one dull spot from a dirty jig will show up in QC.

If your program needs a canteen custom look with a retail feel, ask the canteen factory for a print tolerance sample. We quoted one buyer USD 40–120 per color per design, plus a run fee that drops on 3,000 pc and again at 5,000 pc. That is normal. If you want custom canteen packaging and a laser logo together, keep the artwork simple; tiny text under 1.2 mm stroke width often breaks after coating, and the buyer flags it on first inspection. For distributor canteen programs, repeatable logo placement beats fancy effects. We’ve seen that go sideways when the PO says "front center" but the artwork file shows 8 mm off.

Coating and finish affect failure rates

Finish is not just looks. Powder coating gives better grip and hides fingerprints, but bad line prep will chip it fast. Gloss paint can look sharp on the sample table and scratch in transit. Bare stainless or brushed finish cuts coating risk, but weld marks and dents show up straight away. For Europe, matte powder coat is usually the safer retail call. We run 60–120 μm on powder coat; if a buyer pushes for 40 μm to save cost, the math does not work.

Ask for coating thickness in microns. A practical range is 60–120 μm for powder coat. Below that, coverage goes patchy; above that, edge detail starts to soften. If your order is customized canteen or customizable canteen with multiple colors, check whether color matching is from Pantone and whether the factory allows ±1.0 to ±1.5 Delta E. QC pulled the sample with a cross-hatch cutter and tape pull test after one PO had a typo on the finish code. For premium B2B gifting, small surface flaws pop under warehouse LEDs and drag down distributor bottle sell-through. We've seen that go sideways.

• Good practice: request 1 master sample and 2 pre-production samples
• Useful spec: coating adhesion class, salt spray hours if relevant
• Buyer note: a 0.3 mm coating edge buildup can affect cap fit on some designs

Compliance paperwork is not optional

If you import from China or source from a Zhejiang canteen vendor, compliance sits inside the product file. It is not a loose PDF someone emails after production. For Europe, ask for REACH-related declarations and food-contact material statements that match the actual BOM, down to the lid gasket and straw if the drawing shows them. For the US, ask for food-contact declarations plus traceable material lots tied back to the steel coil, not just a generic template. If you are a canteen distributor or brand owner, lock down carton markings, country of origin, and batch traceability on the PO; we have seen one wrong PO line on origin marking hold 1,200 cartons at inspection.

Quality control belongs in the PO in plain language. AQL 2.5 for major defects and 4.0 for minor defects is a common starting point on promotional drinkware, and QC should know the same numbers the buyer signed. If your order includes print, check random samples from at least 1% of cartons and run a leak test on 5 pcs per 500 pcs; on our line, QC pulled the sample and used a 0.2 MPa air-pressure tester before carton close. For high-volume distributor canteen programs, ask the factory to retain one signed golden sample and one retention sample per lot. This is the right question to ask. If a supplier pushes back, or says retained samples take too much shelf space, we have seen this go sideways after a shade complaint or logo position claim by 3 mm.

Paperwork does not make a bottle sell, but missing paperwork can stop the whole shipment at the warehouse door.

Price bands and MOQ you can plan around

For a standard 500 ml double wall stainless bottle with one-color logo, a realistic FOB China price is often USD 2.80–5.20 depending on steel grade, lid complexity, and coating. On our line, QC usually checks the powder coat with a thickness gauge at 60–80 μm because thin coating is where the low-end quote starts to show. A brushed body with laser logo usually sits near the bottom of the range. A powder-coated bottle with a premium lid and gift box climbs fast. If you want a custom growler with wide mouth and a tighter seal, budget more. The body neck tolerance is less forgiving, and we’ve seen this go sideways when buyers chase the cheapest lid set.

MOQ for a promotional run is commonly 3,000 pcs per design and color, though some canteen suppliers will quote 1,000 pcs if the model is in stock. The wrong question is “what is your lowest MOQ?” Better ask whether the factory already has the mold, matching lid inventory, and your carton size locked. Lead time is usually 25–35 days after sample approval and deposit, plus 5–10 days for freight booking and export docs. We run about 600,000 units per month in Hangzhou across multiple SKUs, but each PO still needs a production slot, and one carton mark typo can hold packing for a day. Do not promise your sales team a 14-day ship date unless the factory has stock, the artwork is final, and the carton spec is already approved. The buyer flagged this on us before, and they were right. That is how B2B drinkware buyers get burned.

Frequently asked questions

What is a normal MOQ for double wall bottle promotional orders?

For most custom drinkware programs, 3,000 pcs is a realistic MOQ for one logo and one color. If you need multiple Pantone colors, mixed lids, or special packaging, expect 5,000 pcs or more. Stock models can go lower, sometimes 500–1,000 pcs, but your branding options are limited. On a Zhejiang production line, MOQ is tied to coating setup, printing screens, and packing labor, not just steel cost. If a canteen manufacturer offers 300 pcs with full customization, check the hidden charges carefully.

How do I compare canteen manufacturer quotes fairly?

Compare the same spec line by line: steel grade, wall thickness, lid type, coating thickness, print method, and carton packing. A quote at USD 3.10 may be worse than USD 3.60 if the cheaper bottle uses 201 outer steel, thin gasket material, or no drop-test standard. Ask for FOB price, sample cost, logo setup, and carton count per export carton. Good canteen manufacturers in China should state lead time, QC standard, and whether REACH or food-contact declarations are included.

Can a custom canteen be used for hot coffee and cold water?

Yes, if the lid and gasket are designed for both. A solid double wall stainless bottle usually keeps hot drinks warm for 6–12 hours and cold drinks chilled for 8–18 hours under normal conditions. Coffee users care more about leakage and mouth comfort than maximum insulation. For carbonated drinks or a custom growler use case, confirm pressure tolerance and avoid lids not rated for gas buildup. Test with real filling temperature, not just lab warm water.

What certifications should I request from a canteen supplier?

For Europe, ask for REACH-related declarations and traceable material records. For the US, request food-contact support documents and material specifications for the steel and silicone. If the supplier claims factory audit status, ask for BSCI or equivalent audit results if that matters to your customer. Also request the inspection standard used at shipment, commonly AQL 2.5 major and 4.0 minor. A canteen supplier in Zhejiang should be able to provide these without slowing production by more than a day or two.

What packaging should I choose for distributor drinkware?

For distributor drinkware, use a retail-ready inner box if the bottle goes through wholesale channels, or a simpler white box if the buyer relabels locally. Export cartons should usually hold 24 or 36 pcs depending on bottle size and carton strength. If you sell through Amazon or similar channels, ask for barcode placement, FNSKU labeling, and drop-test-capable packaging. Packaging can add USD 0.20–0.80 per unit, but it often saves more in damage claims and warehouse handling.
