Customizable Insulated Tumbler Buyer Guide: Failure Modes to Avoid

You can sign off on a clean sample and still get a shipment that leaks, chips, smells, or loses print after two dishwasher cycles. That is the problem with a customizable insulated tumbler. The bad failures usually do not show up in a 15-minute sample check under office lights. They show up after mass production, after 28 days on the water, or after the end user runs it for a week. We’ve seen QC pull a sample that passed visual check, then fail on lid torque at 1.2 N·m and start weeping at the seal. If you buy custom drinkware for retail, promotion, or distribution, you need to spec the failure points before tooling and artwork approval.

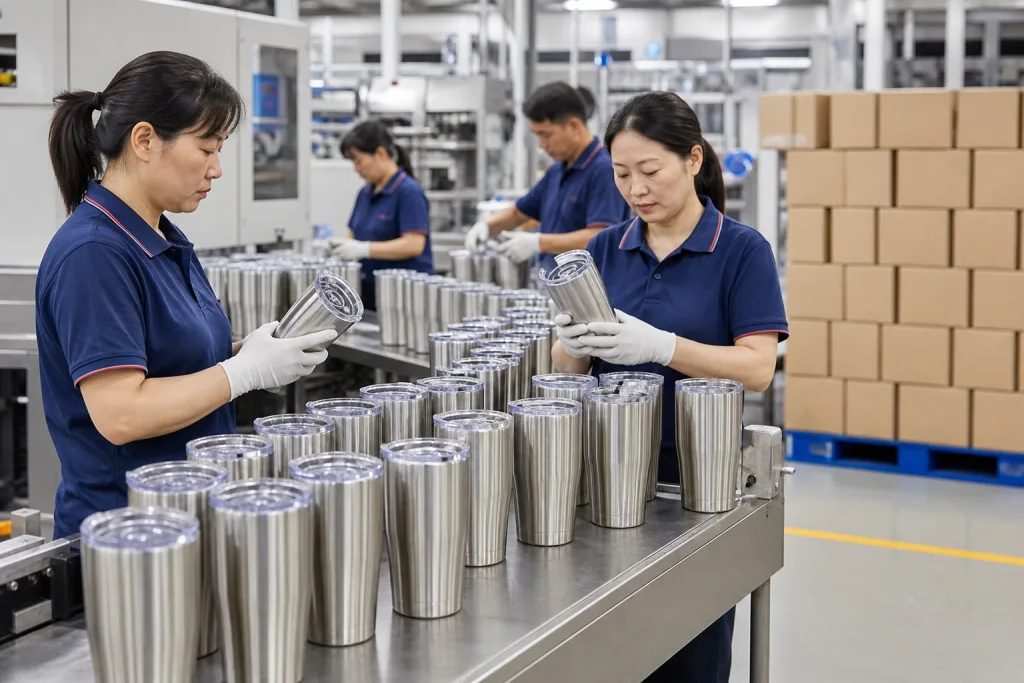

At a canteen factory in Zhejiang, we see the same pattern on the line. Buyers spend 2 rounds on Pantone and logo size, then come back with claims on vacuum retention, lid fit, coating adhesion, or carton drop performance from 76 cm. One PO even had the logo position typoed by 3 mm, and the buyer flagged it only after pre-production photos. If you are a canteen distributor, a canteen vendor, or building a private-label line, treat sourcing as a failure review, not a beauty contest. Frankly, color-first is the wrong question to ask.

Where tumblers usually fail

Most buyers treat insulated drinkware defects like bad luck. They are not. We see the same failures repeat because the same shortcuts show up on the line. For a customizable insulated tumbler, the common failure points are material mismatch, vacuum loss, lid sealing drift, decoration weakness, and packaging that passes factory drop checks but gets crushed after rough courier handling. If you are sourcing from a canteen manufacturer or comparing canteen manufacturers in China, this is where your time should go. This is the right question.

A tumbler can look premium and still be built wrong. We have seen 20 oz bodies with outer wall thickness dropping to 0.35 mm, so they dent after one hit on a packing table. QC pulled samples where silicone gaskets held coffee odor after 3 uses, and we have seen powder coating scratch because the pretreatment tank pH drifted out of range. Custom canteen and custom growler orders follow the same pattern. Even canteen promotional programs with a one-color logo fail for technical reasons, not artwork. The buyer flagged the logo. The real issue was undercure.

• Vacuum loss: usually starts at the weld seam, evacuation step, or sealing point. We’ve seen heat retention drop to 12 hours because the vacuum port seal was hit during handling.
• Leaks: most cases come from lid tolerance drift or gasket compression set, not a simple "bad cap." On one run, the thread fit was off by 0.2 mm and leak complaints followed.
• Print failure: surface energy, curing temperature, and artwork position decide the result. If the line skips a dyne test, the math doesn't work.
• Transit damage: EPE thickness, dividers, master carton strength, and pallet stacking decide claim rates. We ship plenty of 24-piece master cartons, and weak corner crush is where this goes sideways.

If you are a canteen supplier, canteen distributor, or distributor drinkware buyer, treat these as engineering controls. Ask for a defect list before sampling starts. Ask for numbers: leak test standard, vacuum hold data, coating adhesion result, carton drop height, AQL 2.5 findings. The stronger canteen factories in Zhejiang answer with data, not sales talk.

Material specs buyers skip first

The first costly miss is vague material spec on the body and lid. We see this every month. A buyer asks for a customizable drinkware sample, likes the silhouette, and assumes all stainless steel is equal. It is not. For insulated tumblers, put food-contact 18/8 stainless steel, also listed as SUS304, on both inner and outer body. If you are sourcing a lower-cost custom canteen for non-acidic use, some factories will quote SUS201 on the outer wall to cut cost. That saves money on paper, usually around USD 0.20 to 0.35 on a 20 oz item, but the corrosion resistance is different and the finish consistency drifts batch to batch. For Europe and North America, 304 inside is the baseline. If a supplier pushes back on that, the buyer flagged the right issue.

Wall thickness matters as much as grade. On our line, a common working range is 0.4 mm to 0.5 mm for the inner wall and 0.45 mm to 0.5 mm for the outer wall on a 20 oz tumbler. Go thinner and you might save USD 0.08 to 0.15 per unit, but dent rate goes up and the weld seam gets less stable under vacuum. QC pulled the sample once on a 0.35 mm body because the bottom edge deformed after drop test. Lids need the same level of detail. Ask whether the lid body is AS, SAN, Tritan, or PP, and whether the slider is PP or ABS. If your market cares about dishwasher use, odor retention, or impact clarity, this is not a small point. We have had one PO where the buyer wrote “transparent lid” and meant Tritan, while the factory read it as AS. That kind of typo gets expensive fast.

What to put on the spec sheet

• Body material: inner SUS304, outer SUS304
• Inner wall thickness: 0.4-0.5 mm
• Outer wall thickness: 0.45-0.5 mm
• Lid material: Tritan or AS, food-grade silicone gasket
• Surface finish: powder coat, spray paint, electro polish, or brushed
• Compliance: REACH, LFGB or FDA contact safety as required

For a customized canteen, customizable growler, or customized growler program, this detail shuts down quote games early. This is the wrong question to ask: “Why is one quote cheaper?” Ask what changed in steel thickness, lid resin, and coating stack. Two canteen suppliers can quote the same shape with a USD 0.70 difference because one is using thinner steel, simpler lids, or lower-cost coating chemistry. We have seen this go sideways at 3,000 pcs MOQ when the approved sample looked fine but mass production used a softer outer wall and a lighter powder coat build. If you want clean apples-to-apples pricing from canteen vendors in China, start with the material spec and lock it before sampling.

Vacuum retention goes wrong quietly

Vacuum loss is the defect buyers catch after goods land. The tumbler looks normal, passes a visual check, then holds heat for 3 hours instead of 8. Set the insulation spec before the PO goes live; this is the right question to ask first. For a 20 oz double-wall vacuum tumbler, a workable commercial target is hot retention of 6-12 hours and cold retention of 12-24 hours, depending on lid style, fill level, and ambient conditions. If a supplier writes only "good insulation," you still have no spec. On our line, QC pulled one clean-looking sample last month that failed thermal hold even though the powder coat and rim finish were fine.

The risk usually sits at the weld seam and the vacuum sealing point. A small leak there kills performance quietly. Rough transfer before coating can also hit that area; we've seen cups knocked in a steel basket before the powder booth, and the math doesn't work after that. Better canteen manufacturers run in-process vacuum checks, not only final inspection. Ask how they verify vacuum status: weight comparison against a non-vacuum body, a heat retention test with recorded timestamps, or dedicated vacuum testing equipment. Ask the sample size as well. Testing 3 pieces out of 5,000 tells you almost nothing.

For bulk orders, ask for a written thermal test method: water temperature at fill, room temperature, time interval, and pass/fail number.

Example: fill at 95°C, hold at 20°C ambient, measure after 6 hours, target not lower than 55°C. For cold testing, use 0-4°C fill with ice-water and define the end point after 12 hours. Put it in writing on the PO, even if the buyer flagged only color or logo placement. Once it is written, your canteen supplier cannot shift standards later. This applies whether you buy a custom growler, customizable canteen, or a distributor growler line.

If you need retail consistency, require a pre-shipment thermal test and retain 2-3 sealed reference samples from the approved lot. We ship these against lot numbers and carton marks so the record stays clean. A canteen vendor with real export discipline will accept that request. In Zhejiang, larger factories shipping to Amazon, chain retail, and promotional importers already run this way. Last season, one buyer's PO even had the lid code typed wrong, and the retained samples helped close the argument fast.

Lids leak for simple reasons

Leak complaints usually come back to tolerance stack-up, not some mystery defect. Buyers spend most of the review time on the tumbler body and treat the lid like a small add-on. That is a mistake. In our line, lid issues drive more returns than body dents. A customized drinkware order can pass visual inspection and still fail on the desk because the thread fit is loose by 0.2 mm, the slider track came out warped from the mold, or the gasket hardness shifts from batch to batch. QC pulled the sample once and found one side of the gasket compressing flat while the opposite side barely touched, so one side sealed and the other side wept.

For tumblers, split the claim clearly: splash-resistant, leak-resistant, and fully leakproof. These are not the same. Many slider lids are only splash-resistant, even if the sample feels tight in hand. If your sales team promises leakproof use for a commuter tumbler, ask for a different lid structure: usually a screw lid with a direct-seal spout or a locking part. Put that exact wording on the PO. We have seen buyers write “no leak” on email and “slider lid” on the PO, then the buyer flagged it after arrival. That claims gap turns into an argument between the sales promise and the factory build.

QC points that actually matter

• Gauge the thread engagement on body and lid
• Check gasket shore hardness consistency batch to batch
• Run upside-down static leak test for 30 minutes
• Run shake test with 70-80% fill for 1 minute
• Confirm slider travel and snap fit after decoration curing

If you buy from canteen distributors or a canteen manufacturer with multiple lid options, ask which lids are mature production items and which were opened on a new mold in the last 60 days. This is the right question. New lids often look clean at sample stage, then go sideways in bulk because the mold is still being tuned and the line is compensating by hand. On a 3,000-unit MOQ order, one unstable cavity can turn into 200 or 300 complaints fast. We ship plenty of canteen promotional orders, and those are the worst cases for rework because the vessel date is fixed and there is no spare week.

Ask if spare lids can be ordered separately. A practical canteen supplier should support replacement lid MOQ of 500-1,000 pieces, packed by color and cavity number if needed. The math does work here. If the body quality is fine and one lid batch has an after-sales issue, buying 800 replacement lids is cheaper than writing off 3,000 full tumblers.

Decoration fails after approval

Logo approval is not decoration control. We see this every month: the buyer signs a clean sample photo, then expects bulk to match unit for unit. On a customizable insulated tumbler, print quality comes down to coating pretreatment, curing temperature, artwork setup, and the print method on the line. Powder coating with laser engraving is forgiving. Spray paint with silk screen also works well, but only if adhesion is stable and the oven actually hits the set curve—our line checks film cure with a tape test after cooling.

Match the process to the sales channel first. This is the right question. Promotional orders usually run 1-color silk screen because the math works at 1,000 pcs MOQ. Retail private label often chooses powder coat plus laser logo because it holds up better after shelf handling and carton friction. UV print gives wider color range, but on curved 304 stainless it needs tighter fixture setup, and we would not sell it as the toughest finish. For a canteen custom project going to gyms, outdoor retail, or school channels, test scratch and adhesion, not just color accuracy. QC pulled the sample once on a school order because the white logo shifted 2 mm near the seam.

• Silk screen: lower cost, good for simple artwork, but curing window is tight and scratch resistance is weaker.
• Laser engraving: durable, cleaner retail look, best on powder-coated or painted body.
• Heat transfer: good for wrap graphics, but alignment at the seam needs control; we usually mark a 3 mm no-critical-art zone.
• UV print: strong color options, but abrasion resistance is weaker than engraving.

Ask for named tests, not general promises: cross-hatch adhesion, alcohol rub test, dishwasher simulation if relevant, and color delta tolerance for Pantone matching. If your distributor canteen line is retail-facing, define logo position tolerance such as ±1.5 mm vertically and ±2 mm around circumference. Put it on the PO. Without numbers, you will hear "within factory standard." We have seen that phrase go sideways after bulk packing, especially when the buyer flagged logo tilt and the sales side had no written limit.

In China, a better canteen factory keeps the approved color chip and approved golden sample in the print area, not just in the sales office. Ask for a photo of both beside the machine. Ours sit next to the screen frame rack with the PO copy clipped above. Simple control. It prevents weeks of argument on customized canteen and customizable drinkware orders.

Packaging is part of quality

We’ve seen plenty of tumbler returns that looked like product defects at first glance. They were carton problems. The cup passed final check on the line, then reached the buyer with a dented rim, a rubbed-off powder coat, or a cracked lid because the inner pack shifted and the master carton collapsed under stacking load. If you ship full containers out of Zhejiang or mix 6 to 12 SKUs in one consolidation, vibration and top-load compression are where claims start. This is the wrong place to save $0.08 per set.

Lock the pack-out before production starts. A plain white box and export carton is standard, but the real protection comes from the numbers: carton size, gross weight, wall type, and drop standard. On a 20 oz tumbler, we usually run 24 units per master, sometimes 25 if the body profile is straight and the gift box is tight; one flared shape can change the whole carton. Keep gross weight under about 15 kg if warehouse staff will hand-stack it. QC pulled a sample last month where the PE bag opening was too short by 8 mm, and the powder coat got scratched at the shoulder during carton shake. Use dividers or individual bagging on finishes that mark easily.

Minimum packaging controls

• 5-layer export carton, burst strength or edge crush rating specified
• 1A drop test expectation from 76 cm for packed carton
• Barcode placement confirmed before mass production
• FNSKU or carton marks checked against shipping plan
• Moisture control for sea freight: desiccant if needed

For Amazon FBA, one labeling mistake can cost more than a small coating blemish. Check FNSKU, carton labels, suffocation warnings, and country-of-origin marking before packing begins, not after 3,000 units are sealed. We’ve seen this go sideways over one PO typo and one mislabeled outer carton. A factory that serves e-commerce accounts should be able to show carton layouts, labeling SOPs, and a live sample from the packing table. If they can’t, plan to watch the first run closely.

For distributor growler or distributor drinkware programs, ask for an overpack sample with the actual filled carton weight and outside dimensions. Get the real numbers. A carton that looks fine on paper can wreck pallet efficiency by 12% once the overpack is taped and weighed. The buyer flagged this on a recent program because the master was 18 mm taller than the approved drawing, and the math didn’t work on the pallet stack. Packaging is not admin work; it drives claim rate, landed cost, and warehouse labor.

Inspection beats apology every time

If you want fewer surprises, set checkpoints before PO release, not after the line starts. Any solid canteen supplier should accept that. We run 4 gates on export orders: sample approval, pre-production review, in-line check, and final inspection. AQL 2.5 for major defects and 4.0 for minor defects is still a practical baseline, unless your retailer spec is tighter. This is the wrong question to ask: “Can you inspect at the end?” End-stage inspection is too late. Define defects first, write them into the PO, and have QC sign against the same sheet.

Your defect list needs to be specific. Include vacuum failure, leakage, wrong logo position, color mismatch beyond approved tolerance, dents, sharp edges, unstable base, odor, and carton damage. We also add market items like straw fit, carry loop pull force, or dishwasher notice wording, because one missing line of copy on a gift-box insert has held a shipment before. For a canteen customizable program with accessories, inspect accessory assembly as its own checkpoint. QC pulled the sample on one order because a 2 mm silicone straw tip was loose in transit. Small parts create large delays. We have seen this go sideways.

Lead time has to match the control points. Typical bulk production is 25-35 days after deposit and artwork approval. A new mold or custom lid can extend that to 35-50 days. MOQ for standard customizable insulated tumbler models is often 1,000-3,000 units per color, while laser logo on stock colors may start lower. Even a Zhejiang plant running 300,000 units/month can miss ship date if artwork, packaging, and test criteria are not frozen early. We ship on time when the barcode size, carton marks, and Pantone reference are locked before mass production, not while cartons are already on the floor.

Ask the factory these blunt questions:

• Can you send pre-production samples from actual bulk materials?
• What is your rework process if leak rate exceeds 1%?
• Do you support BSCI, ISO 9001, or third-party audits?
• Can you provide REACH, LFGB, FDA, or ASTM test reports as needed?

That is how experienced canteen distributors, canteen suppliers, and canteen vendors cut risk. Not by trusting a clean-looking sample. By controlling failure points before the container leaves China. The buyer flagged a logo position issue on one PO because the print sat 4 mm higher than the approved sample; that is exactly the kind of miss you catch with checkpoints, not apologies.

Frequently asked questions

What MOQ should I expect for a customizable insulated tumbler?

For a standard 20 oz or 30 oz stainless steel tumbler, MOQ is usually 1,000 to 3,000 units per model, often split by 1-2 colors if the factory allows. Laser logo on a stock color can start around 500-1,000 units, while a new body color, gift box, or custom lid pushes MOQ higher. If you need a fully customized canteen or custom growler with new tooling, expect 3,000-5,000 units and mold charges from a few hundred to several thousand USD depending on complexity. Always ask whether MOQ is per color, per print design, or per shipment. Buyers often miss that difference and get an unexpected unit cost increase.

How do I compare quotes from different canteen manufacturers fairly?

Use one written spec sheet and force every canteen manufacturer to quote against the same details. Include steel grade, wall thickness, capacity tolerance, lid material, surface finish, print method, packaging, test requirements, and Incoterm such as FOB Ningbo or FOB Shanghai. Ask each canteen factory in China to state unit weight in grams, carton size, and gross weight. A low quote often hides thinner steel, lower-grade lid plastic, simpler packaging, or no testing allowance. If one supplier is USD 2.85 and another is USD 3.35, the difference is rarely random. It is usually material or process. Do not compare only photos and sample appearance.

What tests should I require before shipment?

For most B2B orders, require at least five checks: leak test, thermal retention test, coating or print adhesion test, basic drop test on packed cartons, and visual inspection to AQL. A practical setup is AQL 2.5 major and 4.0 minor, 30-minute upside-down leak test, and a written heat retention method such as 95°C fill checked after 6 hours. If the product is for EU retail, ask for REACH and food-contact compliance documents. For kids or outdoor channels, add odor check and edge safety review. If your brand sells through Amazon FBA, also inspect barcode placement and carton marking accuracy before the first pallet is sealed.

How long does production usually take from Zhejiang, China?

For repeat models with approved artwork, normal lead time is 25-35 days after deposit, artwork confirmation, and sample sign-off. During peak season, especially from August to November, some canteen suppliers in Zhejiang, China may need 35-45 days. A new mold, uncommon coating, or custom retail box can add 7-15 days. Shipping time is separate, so plan from PO to warehouse, not only PO to ex-factory. If you have a fixed event date, build in a buffer of at least 10 days for inspection, rework, and booking delays. The safest buyers lock artwork and packaging early instead of changing details after production starts.

Can I source tumblers, custom canteen items, and growlers from one supplier?

Yes, but ask whether the supplier is the direct canteen factory for all categories or a trading setup combining multiple plants. Many canteen suppliers offer tumblers, sports bottles, custom growler formats, and customized canteen lines under one sales team, but the production source may differ by item. That is not automatically bad, but it affects QC control, lead time, and consistency. Ask which products are made in-house, monthly capacity, and whether accessories like lids, straws, and handles come from qualified sub-suppliers. If one supplier can manage 200,000-300,000 units per month with stable inspection records, consolidation can lower your freight and admin cost.
