custom polypropylene bottle us: failure-proof B2B sourcing guide

A custom polypropylene bottle looks simple until the first production run lands with warped caps, cloudy bodies, weak print adhesion, or cartons crushed after 2 weeks in a US warehouse. We’ve seen 5,000 pcs held at the forwarder because the cap OD ran 0.6 mm oversize and would not pass the buyer’s fit test. For B2B buyers, the bill is not the bottle alone. It is repacking, a launch pushed back 12 days, chargebacks, and a canteen distributor explaining defects to retail accounts.

Polypropylene, usually marked PP or resin code 5, works well for lightweight canteen promotional programs, school bottles, outdoor kits, and value-priced custom drinkware. Specify it like an industrial component, not a catalog giveaway. That is the wrong question to ask: “Can you make it cheap?” From our Zhejiang, China production base, we run into the same preventable failures on the line: PDF drawings with no wall thickness, color tolerance left wider than ΔE 2.0, pad print chosen where screen print would hold better, and no defined AQL before deposit. QC pulled the sample, the buyer flagged it, then everyone loses 7 days arguing over what was never written on the PO.

The wrong PP grade gets chosen

The first failure is material. We see about 4 out of 10 new buyers ask for a custom polypropylene bottle us quote and treat every PP resin as equal. It is not. A bottle made from random recycled PP or a low-melt-flow grade may look fine in a sales photo, but QC can still pull the sample for oily odor, oval mouth deformation after a hot-fill check, or brittleness after 90 days in a hot warehouse.

For US custom drinkware, require food-contact polypropylene with a resin traceability record. If the bottle is for children, schools, sports clubs, outdoor retail, or canteen promotional campaigns, ask the canteen supplier to confirm whether the PP is virgin, recycled, or blended. Recycled PP can work for some sustainable lines, but it must be declared and tested properly. “Eco material” is not a spec. We had one buyer flag this after the PO only said green PP, while the factory file listed a blended resin with no batch number.

A practical spec should include resin type, approved color masterbatch, target wall thickness, temperature guidance, and any dishwasher claim. For a lightweight sports canteen customized for events, we normally see 0.8-1.2 mm wall thickness depending on shape. For a more rigid custom canteen or distributor canteen line, 1.2-1.6 mm is safer. Test the claim. We run the first samples through a digital caliper check at the shoulder, body, and base because a “1.2 mm bottle” can still show 0.72 mm at the corner if the mold flow is wrong. Plenty of PP bottles survive hand washing but deform in repeated 70-75°C dishwasher cycles.

Ask for documentation before tooling or bulk deposit: FDA food-contact declaration for US use, LFGB if you also sell in Europe, and REACH-related declarations for colorants and decoration inks. A reliable canteen manufacturer in China should not hesitate here. If your canteen vendor says “all material is food grade” but cannot identify the resin supplier or test basis, you are buying risk, not savings. The math does not work when a $0.03 resin saving turns into 5,000 warped bottles and a chargeback from the buyer.

The cap looks fine but leaks

Leakage drives the most customer complaints. We see it start when a buyer spends 40 minutes on body shape and logo size, then gives the cap drawing a 2-minute look. PP bottles shrink after molding; on our line, a 0.25 mm thread change after cooling is enough to matter. A small mismatch between thread pitch, gasket compression, and cap torque can turn a clean showroom sample into a leaking mass order.

For any canteen customizable program, put numbers on the closure system. Thread engagement should be checked with go/no-go samples, not eyeballed under the bench lamp. Silicone gasket hardness is usually 50-60 Shore A for squeeze and screw-cap bottles, but the right value depends on lid design and gasket seat depth. If the bottle uses a flip spout, test pull force and hinge cycling. A 500-cycle open-close test is the starting point. Skipping it is the wrong saving.

Leak testing belongs in the purchase order. Write it like this: fill to 95% capacity, close at specified torque, invert for 30 minutes, then shake for 60 seconds. For travel or school use, add a horizontal bag test; QC pulled one sample last season that passed inversion but leaked after 12 minutes lying on its side with a 1.2 kg load on top. If you are supplying canteen distributors in the US, one leaking carton can damage the account more than a 3% price difference ever helps.

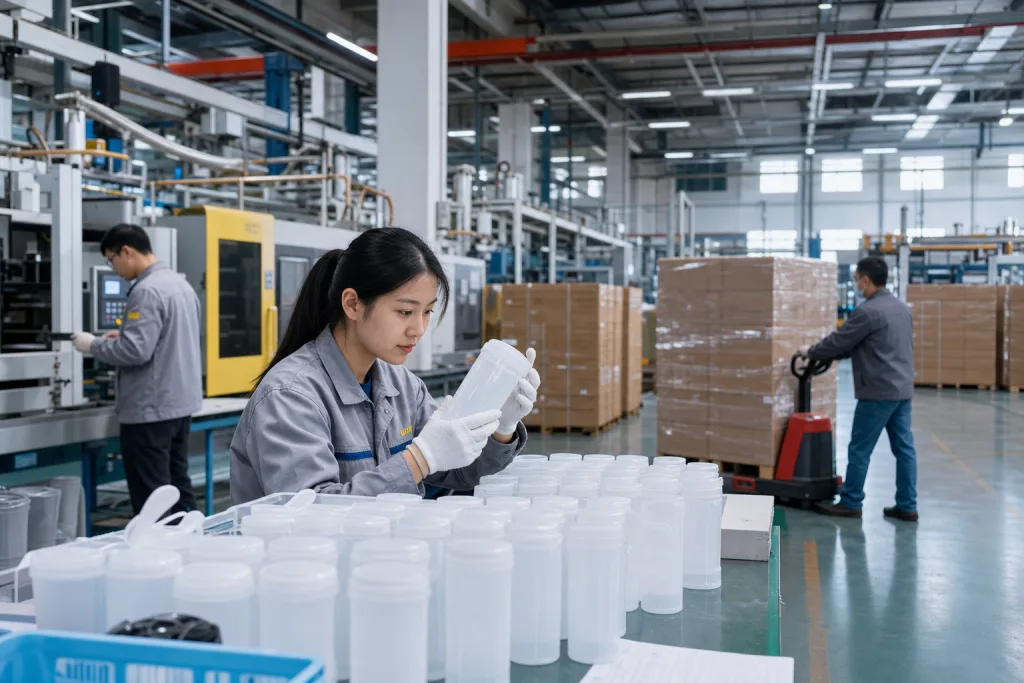

At BottleForge Industrial in Zhejiang, we run typical PP bottle projects at 50,000-120,000 units/month depending on cap complexity and decoration. That speed only pays off when QC checkpoints are fixed before production. Require first-article approval from the injection line, not just a hand-made sample from the sample room. For mass production, set AQL 2.5 for leakage, cap cracks, missing gaskets, and thread defects. We treat them as major defects because consumers do, and we have seen a US buyer flag a full shipment over one carton with wet inner bags.

Color matching drifts after approval

PP color looks simple on a screen and gets messy on the line. A buyer approves a clean blue sample, then the bulk run lands 10% duller or with a green cast under warehouse LEDs. We see this all the time with custom drinkware. PP is semi-crystalline, pigment dispersion moves around from batch to batch, and a 2.5 mm wall can read darker than a 1.8 mm wall. At QC, we pull the plaque, put it in the D65 light box, and the gap shows up fast.

Do not approve color from a phone photo. That is the wrong question to ask. For a custom canteen, ask for a physical color plaque or a pre-production bottle matched to a Pantone reference, then lock the target with a Delta E number. If your brand team uses a spectrophotometer, put the tolerance in writing. For promo orders, Delta E under 2.0-3.0 is usually workable. For retail, you may want tighter control, and you should expect more rejects and a higher cost. We had one buyer send a screenshot from WeChat, and the sample came back 7 Delta E off once it hit the shop floor.

Natural PP, translucent PP, and solid-color PP do not behave the same. A translucent smoke bottle can show flow lines or gate blush that solid black would hide. A bright orange canteen order often needs more masterbatch, and the price moves with it. If a canteen factory gives you the same quote for every color, ask if they are using stock pellets instead of real color matching. If the hopper blender is set by eye, the math does not work. We run that check before the mold is approved.

Color approval has to cover caps, straps, spouts, and silicone parts too. A canteen customized with a navy body, grey cap, and red button gives you three color risks, not one. Put the approved sample in a sealed bag and mark the date, project code, and revision number. One missing digit on a PO can send the wrong cap code into production. Factories in China run 20 or 30 orders at once, so a clear golden sample saves arguments 35 days later when the line is already running.

Printing passes photos, fails handling

Decoration is where cheap custom drinkware often fails. PP has low surface energy, usually around 29–31 dynes, so ink will not bite unless the line does flame or corona treatment before printing. Looks fine on day one. Then QC pulls the sample after carton vibration, or a buyer rubs the logo with a fingernail at the booth, and the print comes off before the bottle ever reaches a dishwasher.

For a custom polypropylene bottle us order, choose decoration by the way the bottle will be used. One-color silkscreen works for event bottles and canteen promo orders when the logo is under 80 mm wide and the MOQ is tight. Heat transfer gives better color coverage, but we run peel and rub checks on PP before approving bulk. In-mold labeling fits large repeat programs, usually 30,000 pcs and up, because the mold setup and label wastage need volume to make the math work. Laser engraving is the wrong question to ask for PP; the contrast is weak compared with 304 stainless, and we have seen buyers reject “engraved” PP samples because the mark looked like a shadow.

Write the print test into the QC plan. Use a 3M tape adhesion test after 24 hours of ink curing, not 2 hours after the operator takes it off the conveyor. Add a rub test: 50 dry rubs and 20 alcohol rubs with moderate pressure. If you want dishwasher-safe claims, run at least 10 cycles before printing the packaging. We have had 4 canteen vendors call the bottle “dishwasher safe” because the PP body survived heat; that says nothing about the logo after detergent, steam, and the rack scraping the same spot for 10 cycles.

Artwork files also create failures. Vector AI or PDF files are preferred, and the PO should match the final file name—we once caught “blue_logo_v3” on the PO while the buyer approved “blue_logo_v5.” Define logo position in millimeters from the bottle base or mold seam. For curved bottles, ask for a print area template before your designer locks the artwork. A distributor growler or customizable growler with a large wraparound graphic needs distortion control; wide PP canteens have the same problem. Approving artwork without a curved-surface proof is how a round logo turns oval, tilts 3 mm off center, or lands too close to the grip zone.

Capacity claims create retail trouble

Capacity looks simple on a spec sheet, but it starts arguments in distributor drinkware programs. A buyer writes 750 ml on the PO, our lab tech fills the sample to the brim on a 1,000 ml graduated cylinder, and the end user expects a normal drinking level below the cap. We have seen the gap land at 30-60 ml, mainly from shoulder angle, gasket height, and cap thread clearance.

State whether the number means brimful capacity or practical fill capacity. For US retail packaging, practical capacity is the safer claim because shoppers fill below the lid, then toss the bottle into a bag. If you print “24 oz” on the bottle, we run a 24 oz fill test with the cap installed, shake it by hand 20 times, and check for wet threads. CAD volume is not enough. Injection molding shrinkage, a 0.2 mm wall-thickness change, or a last-minute resin switch can move the real capacity after the line starts.

Graduation marks need a separate tolerance. If the bottle carries ounce and milliliter markings, define the allowed error on the artwork approval, not after QC pulled the sample. For casual sports bottles, plus or minus 5% usually passes an AQL 2.5 check. For nutrition, medical, or infant-related use, PP bottle markings need tighter control and a compliance review before tooling. A responsible canteen manufacturer should ask the end use before accepting a measuring-scale design; skipping that question is where we have seen this go sideways.

The same discipline applies if your project sits next to a custom growler, customized growler, or customizable growler line. Buyers often reuse one drinkware artwork file across stainless steel, glass, and PP, but the math does not transfer cleanly. A rigid PP bottle can panel slightly under pressure changes; we measured a 1.5 mm sidewall dip on one 32 oz sample after a hot-fill trial. If you plan carbonated beverage use, say so early. Most standard PP canteens are not designed for carbonation pressure, and a vague “water bottle” spec will not protect the importer when a consumer uses it the wrong way.

Packaging is treated as an afterthought

Many production orders pass bottle inspection and still fail in the market because packaging was never engineered. US buyers ask cartons to survive ocean freight, domestic trucking, warehouse stacking, and retailer receiving. We have seen a thin export carton save USD 0.03 per bottle and turn into crushed-carton claims on the first inbound. This is the wrong question to ask: “Can we use the cheapest box?”

For PP bottles, spell out the packing method: individual polybag, paper wrap, egg-crate divider, inner box, or bulk carton. A simple 600 ml custom canteen may pack 50 pcs per master carton. A larger bottle with a flip straw may need 24 or 36 pcs so the cap does not get chewed up in transit. Specify 5-ply corrugated cartons for heavier loads, carton gross weight under 15 kg if manual handling is expected, and drop-test requirements such as ISTA 1A for basic parcel simulation. QC pulled one sample from the line last week, and the cap scuffed the inner wrap after three vibration runs.

If you sell through marketplaces or retail distribution, barcode control matters. Send UPC, FNSKU, carton labels, country-of-origin marking, and warning text before mass production. “Made in China” placement should be approved on the product, packaging, or label based on your channel rules. For a canteen distributor supplying multiple accounts, mixed labeling mistakes are a common chargeback trigger. We once had a PO where the buyer typed FNSKU as FNSUK. That typo cost a reprint.

At our Hangzhou-area operation in Zhejiang, typical lead time is 25-35 days after sample approval for repeat PP bottle orders, and 45-60 days when new tooling or special packaging is involved. Packaging artwork delays the schedule more than molding does. Our carton printer needs a 2-day hard proof, and the packing room checks Pantone against the card before the line runs. If you need FOB Ningbo or FOB Shanghai before a retail date, approve cartons, labels, and pallet requirements at the same time as the bottle sample, not after production is 80% complete. Waiting until the line is moving is where schedules go sideways.

QC rules are agreed too late

The last failure mode is procedural: the buyer and canteen suppliers talk about quality after defects show up. Too late. By then, the merchandiser is checking WhatsApp photos, the line leader is working from memory, and nobody agrees whether the 0.8 mm flash on the PP mouth is a major defect. A proper purchase order should define the inspection standard, defect classification, sample size, and who pays for rework if the lot fails.

For most B2B custom drinkware orders, we run ANSI/ASQ Z1.4 or ISO 2859-1 sampling. A common setup is AQL 0 for critical defects, 2.5 for major defects, and 4.0 for minor defects. Critical defects include unsafe sharp edges, contamination, severe odor, wrong material, and packaging that violates legal marking requirements. Major defects include leakage, cracked caps, missing parts, wrong logo, unreadable barcode, and obvious color mismatch; last month QC pulled 32 bottles from a 5,000 pcs PP bottle lot because the cap torque failed after a 1.2 m drop test. Minor defects include small flow marks, light scuffs, or slight print position variation within tolerance.

Pre-shipment inspection should happen when production is 100% finished and at least 80% packed. For first orders with a new canteen vendor, add an in-line inspection at 20-30% production. That catches color drift, cap fit, and print curing problems before the whole batch is finished; on the pad-printing line, a 2 mm logo shift on day two becomes 18 cartons of arguments by day five. A factory that resists inspection is not automatically dishonest, but this is the wrong question to ask. The better question is whether their process control works before final sorting.

If you buy from multiple canteen manufacturers or canteen vendors across China, keep one quality manual for all of them. Use the same defect photos, same packaging tests, and same approval process; we usually ask buyers to include 12-15 reference photos, carton drop-test rules, barcode grade requirements, and signed golden sample photos in the file. That is how a brand owner turns scattered sourcing into a controlled supply chain. A good canteen factory will appreciate clear rules because it cuts negotiation noise and lets them quote without hiding a 3% rework buffer.

Frequently asked questions

What MOQ should I expect for a custom polypropylene bottle for the US?

For a standard mold with one-color printing, a realistic MOQ is usually 3,000-5,000 pcs per color. If you need custom color matching, special caps, or individual retail boxes, 5,000 pcs is a cleaner starting point because setup loss and print adjustment become manageable. New private tooling can push the economical quantity to 10,000 pcs or more, depending on mold cavities and size. Very small 500-1,000 pc orders are possible only when using stock colors and simple decoration, but the unit price will be high. For FOB China pricing, buyers often see PP bottle costs from about USD 0.65-2.20 depending on capacity, cap structure, packing, and logo method.

Is polypropylene safe for custom drinkware sold in the US?

Polypropylene is widely used for food-contact drinkware, but safety depends on the exact resin, colorant, additives, and decoration. Ask your canteen supplier for a food-contact declaration and, when needed, third-party testing against FDA-related requirements. If the same product will sell in Europe, add LFGB and REACH-related checks. Avoid vague claims like “BPA free” as the only compliance statement; PP is normally BPA-free by chemistry, but that does not prove inks, masterbatch, or silicone parts are suitable. For children’s products, you may need additional CPSIA-related review, tracking labels, and lead/phthalate testing depending on the design and sales channel.

Can I make a PP bottle dishwasher safe?

Sometimes, but you should test both the body and decoration. PP can handle moderate heat better than some low-cost plastics, but bottle shape, wall thickness, and cap design matter. A thin 0.8 mm body may deform where a 1.3 mm body survives. We suggest testing at least 10 dishwasher cycles at 70-75°C before claiming dishwasher safe on packaging. Also test logo adhesion after washing because inks and heat transfers often fail before the bottle body does. If the order is for promotional giveaways, hand-wash-only labeling is often more honest. For retail, document the test method so your sales team does not overpromise.

Which logo method works best on polypropylene canteens?

For simple logos, silkscreen printing is usually the most economical and stable option, especially at 3,000 pcs and above. For full-color graphics, heat transfer or label-based solutions may work, but PP surface treatment and curing are critical. Require a tape adhesion test, rub test, and sample aging before bulk approval. If you want a premium permanent mark, PP is less suitable than stainless steel because laser contrast is weak. The right choice depends on logo size, number of colors, bottle curvature, and wash expectations. For a canteen promotional order, do not pay for complex decoration unless the campaign really needs it.

How long does production and shipping usually take from China?

For repeat orders using an existing mold, plan 25-35 days for production after sample and artwork approval. New mold development usually adds 20-30 days, making the total 45-60 days before shipment. Sea freight from Ningbo or Shanghai to US West Coast ports can take around 18-28 days port-to-port, while East Coast delivery is often 30-40 days depending on routing and congestion. Add time for customs, trucking, and warehouse receiving. If you are a canteen distributor preparing a seasonal launch, lock artwork, color, barcode, and carton specs before deposit. Late packaging changes are one of the most common schedule killers.
