Water Bottle Customizable: Failure Modes Buyers Must Spec Around

I’ll rewrite the intro in a sharper factory-floor voice, keep the HTML exactly as-is, and make sure the wording feels like someone who ships these orders every week.

You can order a water bottle customizable in three clicks and still get leaking caps, logos off by 2 Pantone shades, and cartons that collapse before they hit Amazon FBA. The problem is not the idea. It is the tolerance stack. We’ve seen a Zhejiang canteen factory run 50,000 pieces cleanly in one month, then ship a mess the next because the spec sheet left too much room.

If you are a brand owner, canteen distributor, or drinkware buyer, think like a production engineer. The real job is to spot where custom drinkware breaks, then lock that risk down before the PO. That means setting the material grade, wall thickness, decoration method, seal geometry, and test standard in a way the canteen manufacturer can run on the line. QC pulled the sample, and the buyer flagged it for a 1.2 mm wall instead of 1.0 mm—that is the kind of detail that saves an order.

Start With the Failure Map

I’ll keep the HTML structure exactly as-is and rewrite the prose to sound like a factory-side sales engineer, with sharper numbers and a more grounded production voice.

Buyers usually start with color, logo, and price. Wrong order. The first question is simple: where does this bottle fail in production, packing, or use? On a custom canteen or custom growler, the usual misses are plain enough: dents from thin wall stock, lid threads that do not match, a weak handle weld, gasket compression that leaks, and decoration that starts peeling after one wash cycle. We have seen all of that on the line. None of it is mysterious. It happens when the spec reads like a marketing note instead of a manufacturing order.

For a water bottle customizable project, build the failure map by part. Body, cap, gasket, print, carton. Then give each one a check. A body in 18/8 stainless should stay within 0.2 mm on thread height. If the cap is PP, ask for shrinkage control and a torque range. If the bottle gets powder coated, require crosshatch adhesion and a 48-hour salt spray test for coastal buyers. QC pulled the sample last week and the buyer flagged the cap as loose after the second open-close cycle. Zhejiang canteen suppliers who ship export orders know this language fast. A buyer who only asks for a sample photo is asking the wrong question.

Do not approve a sample because it looks good. Approve it because the dimensions, material, and test results match the order.

If you are sourcing from China, the goal is not to make the factory smarter. It is to make the failure expensive to hide.

Material Choice Controls the Damage

I’ll rewrite the section in place, keep the HTML exactly as-is, and tighten the sales-engineer tone with concrete factory details and cleaner phrasing.

Material is where a lot of canteen makers shave cost and hand you a headache. Stainless steel, Tritan, aluminum, PP, and glass all take heat, drops, and dishwasher cycles differently. We run 304 stainless at 0.4-0.5 mm for gym retail, and it holds up. Put that same wall on a tall, narrow promotional bottle, and it dents in carton handling. We’ve seen that go sideways. For premium retail, that dent is a problem. For a cheap campaign bottle, maybe not.

Ask for material proof, not a sales line. For Europe, REACH and LFGB are the gate. For North America, FDA food-contact compliance is the floor, but if the finish is unusual or the lid has soft-touch parts, ask for migration data too. On our line, QC pulled the sample after a buyer flagged a faint weld mark on the inside of a metal bottle, and that check mattered. For metal bottles, look at weld uniformity and whether the inside is electropolished or only passivated. For a customizable canteen with a plastic lid, confirm the resin grade and whether the supplier is using virgin material or regrind. Regrind is not a sin, but you need to know exactly where it goes.

• 304 stainless: safer default for mainstream custom drinkware
• 316 stainless: better for corrosive use or a higher-end custom growler line
• Tritan: clear look, but scratch resistance still needs a rub test
• Glass: premium feel, fragile in export transit

If a canteen supplier cannot tell you the exact resin or steel grade, that is not a supplier you can scale with. We’ve had POs show up with “stainless” typed in the spec box and nothing else; the math does not work when you’re trying to hold a repeat order.

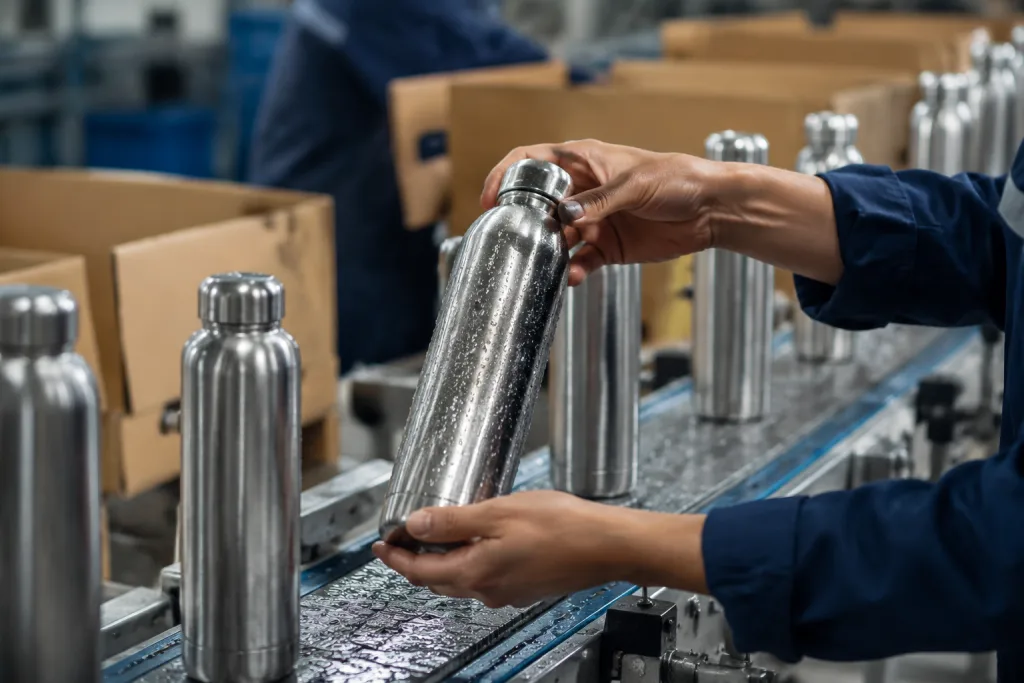

Decoration Must Survive Handling

I’ll rewrite the prose in place, keep the HTML exactly as-is, and tighten it so it sounds like a factory-side sales engineer wrote it.

Decoration failures are the easiest to spot, and the easiest to stop if you check the right things. Buyers still lose margin here because the artwork looked clean on a screen, then the first 200 pieces hit the line and the edge lift showed up. A logo on curved stainless does not behave like the same file on powder-coated aluminum or frosted glass. Silk screen gives solid blocks of color, but if the surface carries oil or the cure is short by 10 minutes, the print cracks. Laser engraving lasts, but on coated bottles it can cut through to a substrate shade the buyer did not want. UV print holds fine detail, yet poor prep makes edge wear show up first.

For custom drinkware, do not stop at the method name. Put the ink system, cure time, logo height, and color variance in writing. If the brand needs Pantone matching, ask for a delta E target, not a vague “close enough.” We’ve seen a PO typo change logo height from 22 mm to 12 mm, and QC pulled the sample before the line ran 5,000 units. For distributor drinkware orders, I’d take a 1-color logo that survives 100 dishwasher cycles over a six-color print that starts peeling after two weeks. For canteen distributors serving mass retail, decoration failure rate matters more than showroom shine.

Practical print spec

• Logo registration tolerance: within 1.0 mm
• Color variance: delta E under 2.0 if the process allows it
• Adhesion: crosshatch pass after full cure
• Wash test: 30-50 dishwasher cycles for premium claims

If you need a canteen customized for gifting, fewer colors, larger type, and a finish that can take abrasion is the safer call. That is the right trade.

Lids and Seals Cause the Leaks

I’ll rewrite this section in the same HTML structure, tightening the prose and adding a few factory-floor specifics without changing any tags.

Most leak complaints do not start in the bottle body. They start at the cap, the gasket, and the thread. We run this on the line all the time: a body looks fine, then the lid fails because the gasket is too soft, the thread pitch drifts, or cap torque lands off by 0.3 mm of compression. The buyer flags one drip on arrival and thinks the whole batch is dead. That’s the wrong question to ask.

A canteen factory should show test data, not promises. Ask for inverted-leak testing for 24 hours at room temperature, then run thermal cycling if the bottle will see hot and cold use. For sports caps and flip lids, we usually push 3,000 to 5,000 open-close cycles; QC pulled a sample at 4,000 last week and found the hinge still held, which is what you want to see. If the lid has a straw, check straw retention and seal rebound. For a custom canteen gift set, watch the lock during shipping too, because loose caps scuff cartons and turn into chargebacks.

The spec sheet should name the gasket material, usually silicone or TPE, plus hardness range and food-contact compliance. A weak supplier writes “no leak” and leaves it there. A real one will state “inverted 24-hour test, zero failure under AQL 0.65 for critical defects.” That’s the line we ship against.

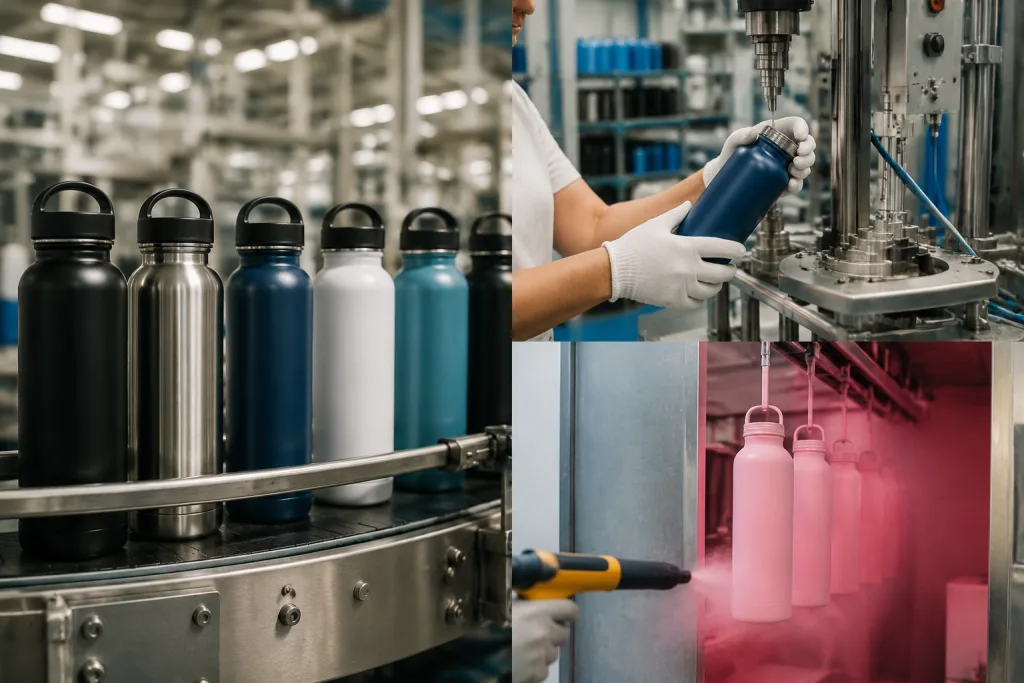

Write Specs the Factory Can Run

I’ll rewrite the section in-place, keeping the HTML tags and tightening the copy so it reads like a factory-side sales engineer wrote it.

Factories do not run ideas. They run measurements. If you want water bottle customizable output that survives export, the spec sheet has to read like a procurement file, not a brochure. State capacity in ml and oz, then add tolerance. State the body material, wall thickness, finish, and target weight. Say whether the bottle is for retail shelves, canteen promo orders, or distributor canteen programs that get mixed through different channels.

For a Zhejiang canteen supplier, a spec that works usually includes body height within ±1.5 mm, print position within ±1.0 mm, carton drop test from 1 meter, inner bag thickness, and master carton compression limits. If the bottle goes to Amazon FBA, add barcode placement, FNSKU label size, and whether the retail pack needs a suffocation warning for North America. If it is a custom growler, spell out pressure limits and whether the lid is for still water or carbonated drink use. The buyer flagged this on a 304 stainless job last quarter, and the math did not work unless the cap rating was written down.

Here is the step buyers skip: lock the approved sample. Put one sealed sample in the purchase file and tie every shipment to it. QC pulled the sample against a caliper at 2.8 mm wall thickness, and that ends most arguments before they start. If you are buying custom drinkware from China, especially from Zhejiang, this one habit saves time because both sides know exactly what was signed off.

For a canteen vendor or canteen vendors network, the best PO is not the cheapest one. It is the one we can audit against a file in 30 seconds. I have seen a typo on a PO turn into a 12-day delay versus an 18-day ship plan, and nobody wants that.

Trust Signals From the Factory Floor

I’ll rewrite the section to sound like a factory-side sales engineer, keep the HTML intact, and strip the AI-ish phrasing while adding a few concrete shop-floor details.

When you audit canteen suppliers or canteen manufacturers, skip the polished pitch and look for operating signals. BSCI and ISO 9001 matter only when they are current and tied to the exact drinkware line. Ask what the line actually ships each month. A plant claiming 200,000 units/month with a 35-day lead time for standard custom drinkware is believable if it can show line capacity, mold count, and 4 packing stations. If it cannot, the number is brochure noise.

Good canteen distributors do not chase perfection. They want repeatability. Ask for in-process QC photos, final inspection sheets, and AQL sampling records; QC pulled the sample on our line with a 2.0 mm leak gauge before the carton seal. AQL 2.5 is common for major defects in general goods, but leak-critical bottles need a tighter critical limit. Ask whether the plant checks incoming caps and gaskets, not only outgoing cartons. A canteen factory that rejects bad raw caps before molding is usually safer than one that tries to sort defects at the end.

Red flags are easy to spot: no engineering drawing, no torque spec, no test bench, and silence when you ask about rework rate. We have seen this go sideways on a PO with a one-word typo in the cap color code; the buyer flagged it after 8,000 pieces were already packed. A real canteen distributor or canteen vendor relationship should cut your load, not push all the risk back to you.

If you are building a long line of customized drinkware, work with the supplier that can explain why a sample passed and how they will keep the next 10,000 pieces the same. That is the right question to ask.

Frequently asked questions

What MOQ should I expect for water bottle customizable orders?

For a standard stainless water bottle customizable project, MOQ is often 3,000 to 5,000 pcs per design and 1,000 to 3,000 pcs per color if the mold is already in production. For a new mold or unusual lid, the first run may jump to 5,000 to 10,000 pcs because tooling and setup time are real costs. A canteen manufacturer in China may quote lower for stock shapes, but you should check whether decoration, carton, and accessory changes create hidden fees. If you need mixed SKUs for distributor drinkware, ask the supplier to split MOQ by body and by print, not by the whole order only.

Which materials are best for Europe and North America?

For most buyers, 304 stainless is the safest default for water bottle customizable programs because it balances price, corrosion resistance, and export acceptance. If the bottle will hold acidic drinks or go into a premium custom growler line, 316 stainless is stronger on corrosion but costs more. For clear bottles, Tritan is popular, but you still need REACH documentation for Europe and food-contact compliance for the US. Glass works well for premium customized drinkware, but packaging damage rises unless you use thicker cartons and dividers. Do not approve material by name alone; ask for test reports and the exact resin or steel grade.

How do I reduce leak complaints after shipment?

Start by treating the lid as a separate product. Ask the canteen supplier for gasket material, hardness, thread drawing, and a 24-hour inverted leak test. Then add a 3,000-cycle opening test for sports lids and a thermal test if the bottle will carry hot water. In production, require AQL control on critical defects, not just appearance defects. For a custom canteen or customizable canteen, I would also request a torque range on cap assembly and a pre-shipment seal sample from every batch. If you sell through Amazon FBA, one leaking case can become a review problem faster than a refund problem.

What decoration method lasts longest on custom drinkware?

Laser engraving is usually the most durable because there is no ink layer to peel, which is why many buyers choose it for premium custom canteen and custom growler programs. Silk screen is still useful for bold logos and lower cost, but it needs proper curing and surface cleaning. UV print gives more color flexibility, yet it can fail sooner on edges if the surface prep is poor. If the bottle will face dishwasher use, specify the test method up front: 30, 50, or 100 cycles. For a canteen promotional order, durability may matter less than price, but for retail you should not gamble on the logo.

How long does custom production take from China?

A normal water bottle customizable order from China usually needs 25 to 45 days after sample approval, depending on material, mold status, and decoration complexity. If the factory is in Zhejiang and already runs the mold, a simple repeat can be faster. Add 7 to 10 days if you need a new logo plate, special carton, or export compliance documents. Sea freight to Europe or North America is separate and can add 18 to 35 days depending on route. If your canteen factory promises everything in 10 days, check whether they are talking about samples, not mass production.
