Vendor kids water bottle sourcing: failure modes buyers must prevent

A vendor kids water bottle order looks simple until QC opens carton 1 of 80: lids weep at the silicone plug, straw tips carry a rubber smell, Pantone 292C drifts toward 291C, or the PP handle cracks after a 1.2 m drop test. For school district buyers and kids-product importers, finding a children water bottle supplier is not the hard part. The hard part is writing a spec tight enough that the factory has no room to guess.

BottleForge Industrial manufactures kids drinkware in Hangzhou, Zhejiang, and we see the same China export mistakes every season. We run kids bottle MOQ from 3,000 units per SKU, normal lead time is 30-45 days after artwork approval, and monthly capacity is about 420,000 units. Last March, one buyer flagged a PO typo that changed “straw lid” to “spout lid”; the math did not work after tooling was already booked. The guide below shows what goes sideways and how to lock it down before deposit payment.

The lid is where orders fail

Most bulk kids water bottle claims start at the lid, not the bottle body. We’ve had 12-carton pilot runs where every cup looked clean under the light box, then QC pulled the sample and found seepage around the flip cap after the backpack drop test. Kids twist caps with two hands, drop bottles from desk height, and shove half-closed lids into bags. If you buy a custom kids water bottle for schools, treat the lid as the product. The body is the easy part.

The usual failure is tolerance drift. A PP lid thread that is 0.20 mm loose can look fine on the line, but after hot water testing and 6 hours of truck vibration, it leaks. A silicone gasket outside the Shore A spec will not seat evenly; our caliper check often catches a 0.3 mm lip variation before assembly. Low-grade silicone in a straw valve can smell sour after 48 hours sealed in a polybag. Buyers sometimes ask us to “just tighten the cap more.” Wrong question. The math doesn’t work if the thread and gasket are already off.

Your purchase order should name the leak test method. For kids bottles, we run 100% leak testing on assembled units: fill to 80% capacity, close cap, invert for 60 seconds, then shake horizontally for 10 seconds. For vacuum stainless models, add a 3-minute inverted hold after hot water filling at 90°C. Sampling under AQL 2.5 alone is too light for lid leakage, because one bad gasket batch can hit 3,000 units before anyone sees wet cartons. We’ve seen this go sideways on a PO where “leakproof” was typed, but no test method was listed.

For a children water bottle custom order, lock the lid resin grade and silicone gasket hardness first, then confirm the straw material, thread go/no-go gauge, and replacement gasket plan with photos from the line. Ask for the torque fixture. Ask for the gauge. If the factory cannot show a torque meter or thread checking fixture, you are trusting workers’ hands, not a quality system.

Materials pass paperwork, then smell

A children water bottle manufacturer can email clean compliance reports and still ship a batch that smells like tires. We have seen this go sideways on a 30,000 pcs school tender when the approved sample used one silicone gasket, then the line changed to a cheaper lid seal after the buyer wrote only “food grade” on the PO. Too loose. That is not a specification. Put the resin grade, pigment code, gasket material, and recycled-content limit on the spec sheet, then make QC check the incoming bags against the lot labels before molding.

For North America, ask for FDA food-contact documentation, CPSIA lead and phthalate testing where applicable, and ASTM F963 if the bottle is sold or promoted as a children’s product. For Europe, LFGB, EU 1935/2004, REACH SVHC, and EN71-3 migration may be relevant depending on the design, decoration, and sales channel. If the bottle has paint, decals, soft-touch coating, or a printed strap, review those layers too; QC pulled one sample last year because the strap print smelled of solvent after 24 hours in a sealed PE bag.

Odor control is shop-floor discipline, not paperwork. Silicone parts should be post-cured when needed, stored at least 5 m away from solvent-based printing, and sealed only after inspection. Tritan-style copolyester bodies should not be mixed with unknown recycled resin unless you approved that material and its lot number. Stainless steel bodies should use 304 stainless for food contact; for kids bottles we usually run 0.45-0.55 mm wall thickness depending on capacity and insulation structure, checked with a digital thickness gauge at the first-piece station.

For any children water bottle customizable program, request a pre-production sample made with actual mass-production resin and pigment, not a “similar sample.” Keep two signed golden samples: one with you and one at the factory in Zhejiang. We label ours with PO number, color code, lid cavity number, and approval date. On a China export order, the golden sample is the referee when a distributor, school board, or customs reviewer challenges the product later, and the math does not work if you try to solve odor claims after 18 cartons have already reached Amazon FBA.

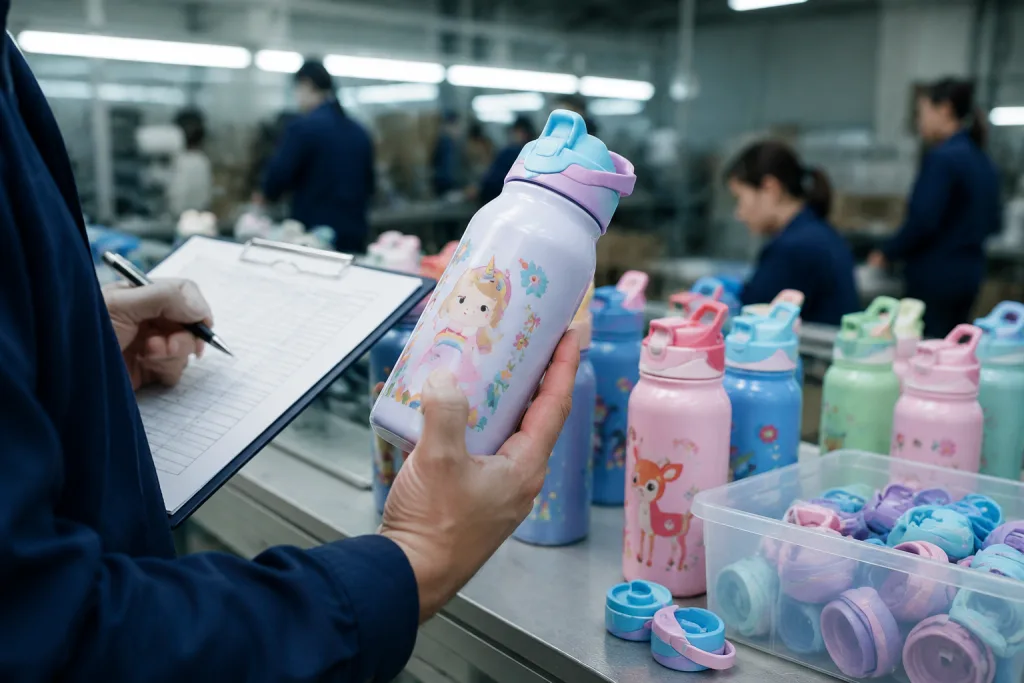

Decoration cracks under kid use

Logo decoration is the spot where a custom logo kids bottle looks sharp in the sample photo and comes back scratched after 14 days in a school cafeteria. Kids drag bottles across laminate desks, drop them into PE bins, and scrub them with the green side of a kitchen sponge. If you sell children water bottle promotional items or a custom school water bottle for district programs, treat decoration durability like lid sealing or wall thickness. We’ve seen this go sideways: QC pulled 20 bottles from a 500 pc pilot run, and 6 logos had edge lifting after a tape pull.

Silk screen printing keeps cost down for one-color logos, and it still works on powder-coated stainless or plastic if the corona treatment and curing time are controlled. For a 2-color mascot logo, we run a mesh screen and check the print edge with a 10x loupe before packing samples. Laser engraving is clean on 304 stainless, but it will not match a Pantone school crest. Heat-transfer labels and UV printing handle full-color graphics, though adhesion must be checked on the exact coating, not a “similar black.” Do not approve artwork from a digital mockup only. That is the wrong question to ask.

Useful decoration tests are simple and cheap. Ask for a 3M tape adhesion test after 24 hours, a 100-cycle dry rub test with a 500 g load, and a 50-cycle wet rub test using a damp cotton cloth. For dishwasher-claimed products, get the actual dishwasher protocol: temperature, detergent type, cycle count, and rack position. A casual “dishwasher safe” line on a spec sheet is not enough. On 1,200 pc children water bottle customized orders, we often label hand-wash only because straws, printed bodies, and lid hinges age faster at 70°C wash cycles.

Color matching needs numbers, not opinions. Use Pantone references for prints and set an acceptable Delta E for coated bodies if your brand cares about repeat orders matching the first shipment. For school district orders, a blue that looks “close enough” under office lighting may still be rejected if it misses the identity guide. We had one PO typo list Pantone 286 C in the email and 285 C in the attachment; the buyer flagged it during pre-production. If you order a bulk school water bottle in four house colors, approve each color chip under D65 lighting and staple the signed chip card to the PO file.

Drop tests reveal weak design

A kids bottle gets dropped. We see it every season. If your children water bottle vendor designs only for carton packing and not school-bag abuse, your customer service team will eat the claims later. The first break points are usually the hinge pin, carry loop, bottom edge, straw cover, and plastic shoulder under the lid; last September, QC pulled 12 samples after a 1.0 m bench drop and found 3 cracked lid shoulders before the bottle body showed any damage.

Set the drop test in the PO, not after the buyer flags leakage. For plastic single-wall bottles, we run 1.0 m drops onto plywood or concrete on the base, side, shoulder, and lid. For stainless insulated bottles, 1.2 m is a practical benchmark, but cosmetic denting needs its own line in the inspection standard. This is the wrong question to ask: “Did it dent?” Ask whether the lid cracked, the seal leaked, the handle detached, or a sharp edge showed up after impact; our QC table uses a 0.5 mm feeler gauge on suspect rim damage.

Capacity and age group matter. A 350 ml bottle for kindergarten children needs a smaller grip diameter, usually around 65-70 mm body diameter, while 500-600 ml models suit older students better. If you push a 750 ml bottle into a young-kid program because the unit price looks better, the math doesn't work. Filled with water, it adds about 0.75 kg before the bottle weight, and we have seen 5-year-olds drop those samples twice in one showroom trial.

For a custom made kids bottle, ask the children water bottle factory to run pilot assembly before mass production. At BottleForge in Zhejiang, we typically recommend 50-100 pilot units for new lid combinations or new molds. That small run catches hinge stress, straw fit, and cap closing force before 20,000 units are packed into export cartons; on one lid mold, the line found a 0.3 mm pin-hole offset that made the flip cap feel tight after only 30 open-close cycles.

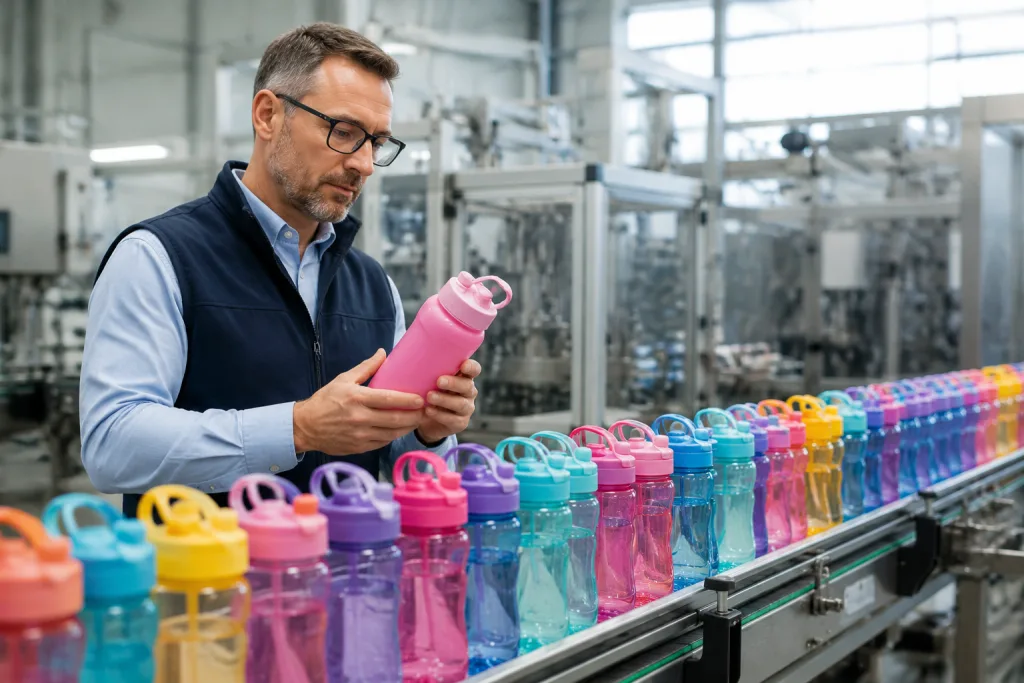

Cartons fail before bottles arrive

Importers spend 20 emails pushing bottle cost down USD 0.03, then lose more money on crushed packaging. We see it on the line after QC signs off: bottles pass the leak test, but the order reaches the buyer with folded retail boxes, scuffed powder coating, or lids shaken loose because the master carton used thin K=A board. For school district buyers, this is where the job gets ugly. Staff end up sorting replacements in a 3-day delivery window before term starts, and nobody has spare hands for that.

Lock the packaging spec before we cut the first PP sample. If bottles ship in individual color boxes, call out the paperboard gauge in gsm, the insert type with a drawing, the exact barcode side panel, the warning label size in mm, and whether the straw is installed or packed in a PE bag. For e-commerce or distributor resale, we usually quote a 5-ply export master carton because the extra USD 0.08-0.18 per unit is cheaper than reshipping. For palletized school deliveries, keep carton weight under 15 kg; our warehouse guys flag anything near 18 kg because hand unloading turns slow and unsafe.

Test the carton before the shipment leaves Hangzhou. We run carton drop testing from 76 cm on corners, edges, and faces, then check compression against the planned pallet stacking height with the carton size printed on the PO. Parcel freight is rougher than LCL. Use stronger inserts, and do not allow loose bottle-on-bottle contact. For 304 stainless bottles with powder coating, QC pulled samples last month where hard plastic flip caps rubbed through the coating after a truck vibration test. The bottle was fine. The packing failed.

If you are buying children water bottle wholesale for a distributor network, confirm carton marks against the packing list, keep SKU separation clean, and set a pallet height your receiving warehouse will accept. Mixed cartons save 6-8% space on paper, but we have seen this go sideways when pickers grab the wrong color set. FNSKU or UPC labels need scanner checks before shipment, not just a visual glance at the artwork file. A wrong barcode on 10,000 units is not a small mistake; receiving stops, chargebacks start, and the buyer flags the factory even if the PO typo came from their side.

Cheap quotes hide missing work

A low FOB Ningbo or FOB Shanghai quote for kids water bottles often skips work the buyer assumed was inside the unit price. We see this 6 or 7 times a month. Tooling adjustment on the lid mold, Pantone color matching under a D65 light box, third-party testing, spare silicone gaskets, individual polybags, retail labels, and inspection support can all sit outside the quote. QC pulled one 350 ml sample last week where the gasket groove measured 0.4 mm shallow on the caliper, and that fix was not in the first price. That is why two quotes for the same custom children water bottle can differ by USD 0.25-0.70 per unit without either factory playing games.

Ask for a costed specification sheet, not just a line price. It should lock capacity in ml, material grade, lid type with gasket count, insulation structure if any, coating, logo method, packaging style, test standard, MOQ, sample cost, tooling cost, payment term, and lead time. For common kids stainless bottles, a realistic FOB China range may be USD 2.40-4.80 depending on capacity, lid complexity, decoration, and packaging. Plastic school bottles may sit lower, but compliance testing and durable flip lids still cost money. The math doesn’t work if the quote says LFGB test included but the lab line on the PI is blank.

Be careful with low MOQs. A children water bottle supplier claiming 300 units for a fully customized molded lid is probably using stock parts or moving setup cost into packaging, sample fees, or freight. Stock color plus one-color print can work at lower volumes; we run jobs like that at 500 to 1,000 units when the buyer accepts our existing lid and body color. A true custom kids bottle with new color resin, custom logo, and retail packaging is more realistic at 3,000 units per SKU. We have seen this go sideways when the PO says “custom lid” but the approved sample is actually our stock 62 mm cap.

Your vendor comparison should include factory audit status such as BSCI or Sedex if your institution requires it, plus ISO-style process controls and AQL inspection cooperation. A good children water bottle manufacturer in China will not object to third-party inspection. We ship with AQL 2.5 checks often, and the line already expects carton drop test, coating adhesion tape test, and lid leak test before release. They may push back on vague standards, and they should. “Good quality” on a PO is not a standard; it becomes an argument when the buyer flagged 18 scratched bottles at shipment time.

Write specs children cannot break

The strongest buyer is not the one arguing over defects after the cartons land. It is the buyer who removes guesswork before we open a mold or print a film. For a vendor kids water bottle project, your RFQ should read like our QC sheet on the line: 350 ml ±10 ml, 72 mm body diameter, 0.45 mm wall thickness, lid torque 8 to 10 kgf·cm. If QC can check it with a caliper, scale, torque tester, or water bath, put it in the spec.

Write the numbers down. Capacity tolerance and body dimensions need actual limits, not “standard size.” Material grades should name the resin or steel, such as 304 stainless for the inner body and food-contact silicone for the gasket. Lid construction needs a drawing or exploded photo, because one buyer once approved a flip lid and then flagged that the hinge pin was plastic instead of stainless. Straw length, gasket hardness, coating thickness, logo size, packaging layout, regulatory marks, warning text, and acceptable defect limits all belong in the PO. For AQL, many importers use critical 0, major 2.5, minor 4.0, but leakage and food-contact contamination should be zero-tolerance or 100% checked items. If you need children water bottle bulk delivery before a school opening date, add the ex-factory date and inspection booking deadline, such as “EXW Hangzhou by August 12, inspection booked by August 8.”

Clarify approvals. A digital render is not production approval. We run material sample, color sample, printed sample, packaging proof, and final pre-production sample as separate checkpoints, because the line can pass color and still fail barcode placement by 3 mm. If any item changes after approval, require written confirmation by email or signed PI revision. Simple rule. No silent swaps. This protects you and the children water bottle vendors you are comparing, especially when a buyer later asks why the PO said “blue” while the approved Pantone card said 2925 C.

For school district and importer programs, the supplier relationship should be practical, not magical. You give a clear spec, the factory confirms what the tooling and MOQ can support, and both sides document the trade-offs before deposit. We have seen this go sideways when buyers ask for 6 colors at 500 pcs each but also want carton marks, individual names, and a 12-day lead time; the math does not work unless printing and packing are simplified. BottleForge Industrial in Hangzhou, Zhejiang supports bulk kids water bottle, children water bottle customized, and distributor programs with export packing, logo decoration, and QC reporting from China. The tighter your brief is, the fewer surprises we ship.

Frequently asked questions

What MOQ should I expect for a custom kids water bottle?

For a stock-shape custom logo kids bottle, 3,000 units per SKU is a realistic MOQ at many China factories, including BottleForge. If you need custom resin color, retail packaging, or a new lid color, expect 3,000-5,000 units per SKU. A new mold or custom made kids bottle may require 10,000 units or tooling fees from USD 1,500 to USD 8,000 depending on complexity. Very small orders under 500 units usually mean limited stock colors, higher unit prices, and fewer packaging options.

Which compliance tests matter for school water bottle programs?

For the U.S., ask about FDA food-contact materials, CPSIA lead and phthalates, and ASTM F963 if the item is marketed for children. For Europe, review LFGB, EU 1935/2004, REACH SVHC, and EN71-3 for coatings or printed parts. Canadian importers may also request CCPSA-related documentation. Do not accept only a generic “food grade” claim. Match the test report to the actual material, color, coating, and lid parts used in your production batch.

How long does production take for children water bottle wholesale orders?

Normal production for a bulk school water bottle order is 30-45 days after sample and artwork approval. Add 7-12 days for custom color matching and pre-production samples, and another 5-7 days if third-party lab testing is required before shipment. Ocean freight to North America or Europe can add 25-40 days depending on port and season. For back-to-school delivery, start the RFQ at least 90 days before the required arrival date.

Can a children water bottle distributor request mixed designs in one order?

Yes, but mixed designs must be controlled by SKU. For example, a 12,000-unit children water bottle bulk order could split into four colors at 3,000 units each if materials and lid parts are shared. Mixing too many small variants increases print setup time, color mistakes, and carton labeling errors. Ask the factory to provide a packing matrix showing units per carton, carton marks, barcode numbers, and pallet layout before mass packing begins.

What defects should be classified as critical for kids bottles?

Critical defects should include sharp edges, broken plastic exposing a cutting point, food-contact contamination, incorrect material, failed leak test, choking-risk loose parts, and missing required warning labels. Major defects usually include logo misplacement, serious color mismatch, cracked retail boxes, poor cap fit, or coating scratches over the agreed limit. Many buyers set AQL critical 0, major 2.5, minor 4.0, but leakage should be 100% checked rather than left to sampling.
